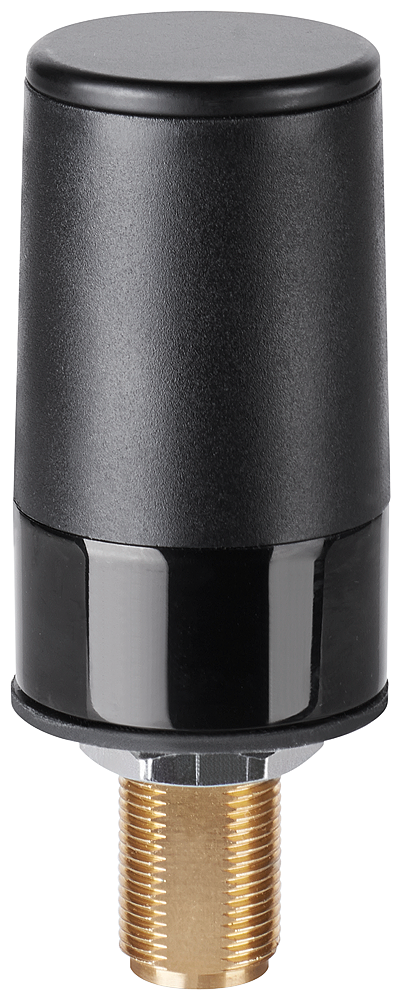

Antenna ANT 896-4ME, mobile communications, GSM/UMTS/LTE, 3 dBi, N-female, IP66
SKU: 6GK5896-4ME00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Antenna ANT896-4ME.
The ANT896-4ME mobile wireless antenna is suitable for GSM (2G), UMTS (3G), and LTE (4G) networks.
It has an omnidirectional characteristic, an N-Connect female connection, an IP66 rating (-40-+70 °C), national approvals, and may be mounted on a control cabinet.
scope of delivery: 1x ANT 896-4ME, concise instructions in hard copy German/English.
Radio frequencies:
type of wireless network / is supported: LTE, UMTS, GSM.
Operating frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator:
with linear radiation: 3 dB.
impedance: 50 Ω.
Polarization: Linear Vertical.
Radiation characteristic: omnidirectional.
standing wave ratio (VSWR) / maximum: 2.
radiating angle of the antenna:
horizontal: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: Female.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
Protection class IP: IP66.
Design, dimensions and weights:
Height: 61 mm.
Diameter: 38.1 mm.
Net weight: 220 g.
Fastening method:
flat roof mounting: Yes.
Roof mounting: No.
Directly on the device: No.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
wireless approval: Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen.
reference code / according to IEC 81346-2:2019: TFB.
