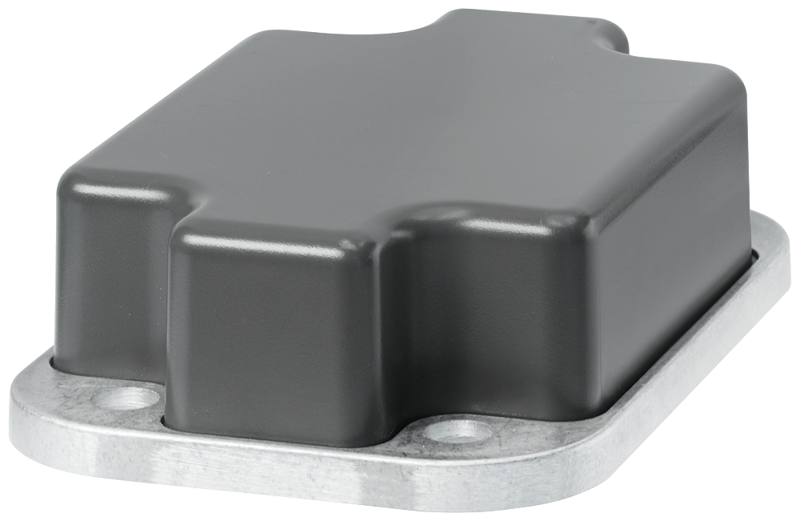

Antenna ANT 896-6MH, mobile communications, railway applications, GSM/UMTS/LT
SKU: 6GK5896-6MH00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Antenna ANT896-6MH.
ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for train applications.
Features include an omnidirectional antenna with N-Connect female connector, 5/6 dBi, IP69K rating (-40...+85 °C), national approvals, mounting on car roof, and hard copy German/English instructions.
Scope of delivery: one ANT 896-6MH.
Radio frequencies:
type of wireless network / is supported: LTE, UMTS, GSM.
Operating frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.7 GHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator:
With linear radiation: 5 dB.
Impedance: 50 Ω.
Polarization: Linear Vertical.
Radiation characteristic: omnidirectional.
Standing wave ratio (VSWR) / maximum: 2.2.
Radiating angle of the antenna:
Horizontal: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: Female.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
Protection class IP: IP69K.
Wind load / maximum: Survival at 500 km/h.
Design, dimensions and weights:
Width: 100 mm.
Height: 40 mm.
Diameter: 145 mm.
Net weight: 488 g.
Fastening method:
Mast mounting: No.
Flat roof mounting: Yes.
Directly on the device: No.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability: Railway application acc. to DIN5510-2, BS6853, NF-F-16-101, NF-F-16-102.
Certificate of suitability:
RoHS conformity: Yes.
railway application in accordance with EN 50155: Yes.
fire protection in accordance with EN 45545-2: Yes.
wireless approval: Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen.
reference code / according to IEC 81346-2:2019: TFB.
