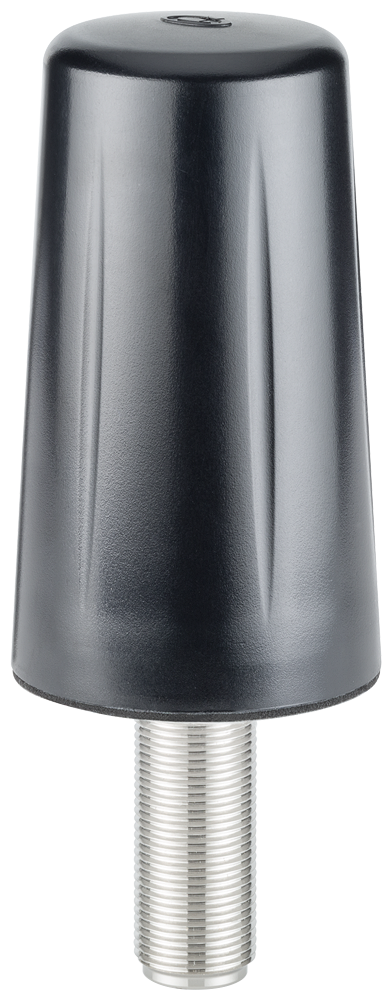

Antenna ANT 897-4ME, cellular, 5G public + private, LTE, UMTS, GSM, 1..6 dBi
SKU: 6GK5897-4ME00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Antenna ANT897-4ME.
The ANT897-4ME antenna is designed for public 3/4/5G mobile wireless networks, private 5G networks, and WLAN 2.4/5 GHz, omnidirectional, 600..6000 MHz, antenna gain: 2..6 dBi, N-Connect female connection, IP65, -40..+85 °C, national approvals required.
The product includes 1x ANT 897-4ME, 1x mounting bracket, and brief instructions in German/English.
Suitability for operation: antenna for public and private 5G networks as well as WLAN.
Radio frequencies:
type of wireless network / is supported: 5G public networks, 5G private networks, LTE, UMTS, GSM, WLAN.
Operating frequency / 1: 617 ... 698 MHz.
Oerating frequency / 2: 698 ... 960 MHz.
Oerating frequency / 3: 1427 ... 2700 MHz.
Oerating frequency / 4: 3400 ... 7000 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator:
With linear radiation: measured on supplied holder.
With linear radiation / in operating frequency area 1 / typical: 1 dB.
With linear radiation / in operating frequency area 2 / typical: 2 dB.
With linear radiation / in operating frequency area 3 / typical: 2 dB.
With linear radiation / in operating frequency area 4 / typical: 6 dB.
Impedance: 50 Ω.
Polarization: Linear Vertical.
Radiation characteristic: omnidirectional.
Standing wave ratio (VSWR) / maximum: 3.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Mechanical data:
material
of the enclosure Aluminium, chromate-free conversion layer.
of outer shell: ASA.
colour: black.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
Protection class IP: IP69.
Design, dimensions and weights:
Height: 82 mm.
Diameter: 48 mm.
Net weight: 212 g.
Fastening method:
Mast mounting: Yes.
Flat roof mounting: Yes.
Wall mounting: Yes.
Roof mounting: No.
Directly on the device: No.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
wireless approval: Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen.
reference code / according to IEC 81346-2:2019: TFB.
