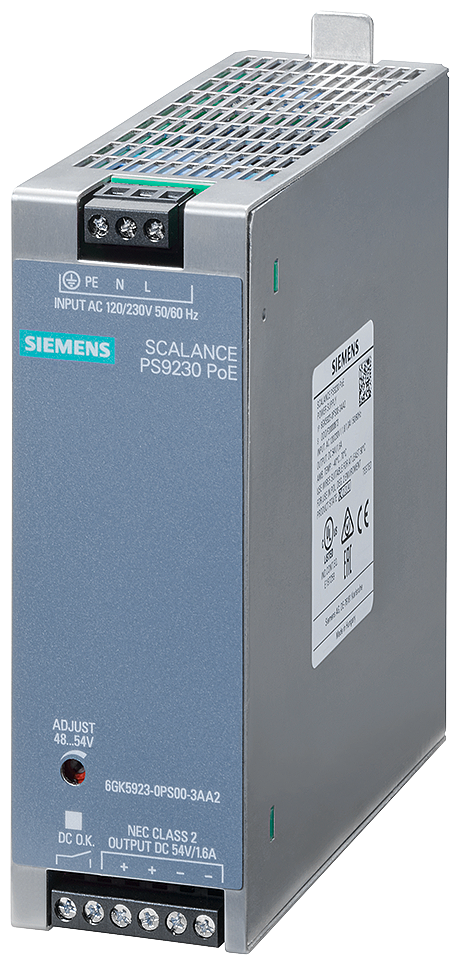

Power supply SCALANCE PS9230 PoE, 120/230 V AC -<gt/> 54 V DC /1.6 A NEC Class 2

Specifications: Type of current supply: Input: AC 120 / 230 V, Output: DC 54 V / 1.6 A, NEC CLASS 2. Suitability for use: Power supply for PoE. Electrical data / input: Voltage curve at input: AC single phase. Supply voltage / rated value: 230 V. Type of voltage / of the supply voltage: AC. Consumed current / at rated supply voltage / maximum: 1 A. Buffering time / for rated value of the output current / in the event of power failure / minimum: 50 MS. Line frequency: 47 ... 63 Hz. Input current / at rated input voltage 230 V / rated value: 1 A. Current limitation / of inrush current / at 25 °C / maximum: 35 A. Fuse protection type / at input: Fuse T 3.15A soldered. Electrical data / output: Voltage curve / at output: Controlled, isolated DC voltage, adjustable from 48 V to 54 V. Output voltage at DC / rated value: 54 V. Display version / for normal operation: LED green for DC ok. Startup delay time / maximum: 1.5 s. Voltage increases time / of the output voltage / maximum: 15 MS. Output current rated value: 1.6 A. Supplied active power / typical: 86 W. Number of parallel-switched equipment resources / for increasing the power: 0. Power loss: 11 W. Electrical data / closed-loop control, voltage peak / maximum: 0.2 V. Design of short-circuit protection: Electronic shutdown, automatic restart. Leakage current: Maximum: 3.5 Ma. Typical: 2 mA. Number of electrical connections: For power supply: 3. For signalling contact: 2. Type of electrical connection: For signalling contact: Screw terminal 0.5 - 2.5 mm². At input: PE / L / N screw-type terminal 0.5 - 2.5 mm². At output: 2x + / 2x -, screw-type terminal 0.5 - 2.5 mm². Relay design: Normal open contact (N/O). Operating voltage / of the signalling contacts: At DC / rated value: 24 V. At DC / maximum: 60 V. Operational current / of the signalling contacts: At DC / maximum: 0.3 A. At DC / at 30 V / maximum: 0.3 A. Width: 42 mm. Height: 125 mm. Depth: 125 mm. Fastening method: 35 mm top hat DIN rail mounting. Ambient temperature: During operation: -40 ... +70 °C. During storage: -40 ... +85 °C. During transport: -40 ... +85 °C. Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %. Protection class IP: IP20.
