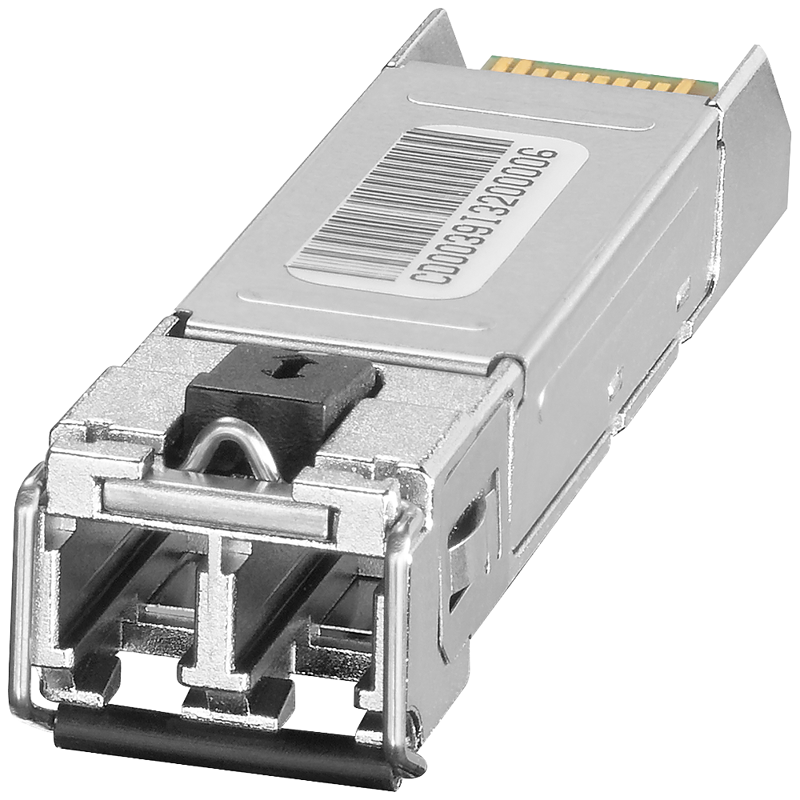

Plug-in transceiver SFP991-1, 1x 100 Mbps LC, MM glass, max. 5 km
SKU: 6GK5991-1AD00-8AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE X accessory includes the SFP991-1 plug-in transceiver with a 100 Mbit/s LC connector and multimode optical up to 5 kilometres.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of electrical/optical connections / for network components or terminal equipment / maximum: 1.
Number of optical interfaces / for network components or terminal equipment / maximum: 1.
Number of 100 Mbit/s LC ports: 1.
Design of the optical interface / for network components or terminal equipment: LC.
Wavelength / of the optical interface: 1300 nm; multi-mode.
Range / at the optical interface / depending on the optical Fiber used: 0 ... 5 km.
Transmission method / for connection type 1: 100BASE-FX.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
A maximum operating temperature of +85 °C is permissible for a duration of 16 hours.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: SFP Module.
Width: 14 mm.
Height: 9 mm.
Depth: 57 mm.
Fastening method: latched.
