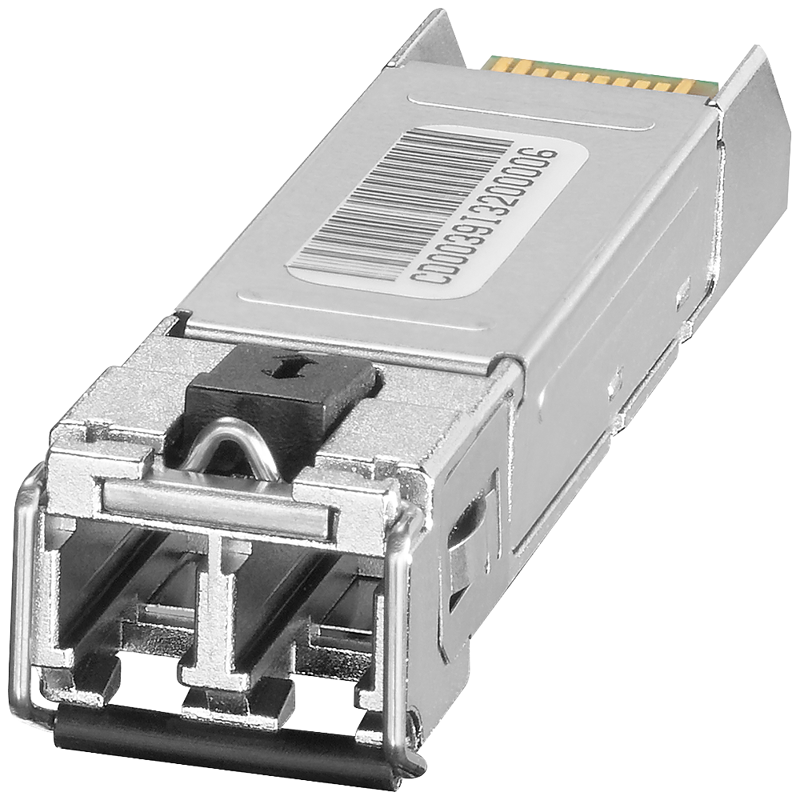

Plug-in transceiver SFP991-1, 1 x 100 Mbps LC, MM optical, max. 5 km, 10 units
SKU: 6GK5991-1AD00-8AC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE X accessories includes SFP991-1, a plug-in transceiver with 1x 100 Mbit/s LC connector and multimode optical capabilities up to 5 km.
1 pack equals 10 units.
interfaces:
number of electrical/optical connections / for network components or terminal equipment / maximum: 1.
number of optical interfaces / for network components or terminal equipment / maximum: 1.
number of 1000 Mbit/s LC ports / for multimode / integrated: 1.
design of the optical interface / for network components or terminal equipment: LC.
wavelength / of the optical interface: 1300 nm; Multi-mode.
connectable optical power relative to 1 mW:
of the transmitter output / minimum: -24 dB.
of the transmitter output / maximum: -14 dB.
of the receiver input / maximum: -12 dB.
optical sensitivity relating to 1 mW / of the receiver input / minimum: -31 dB.
attenuation factor / of the FOC transmission link / minimum necessary: 0 dB.
range / at the optical interface / depending on the optical fiber used: 0 ... 5 km.
transmission method / for connection type 1: 100BASE-FX.
Buy currently uses Select Automation shop pricing and checkout.
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
note: A maximum operating temperature of +85 °C is permissible for a duration of 16 hours.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: SFP Module.
width: 14 mm.
height: 9 mm.
depth: 57 mm.
net weight: 0.01 kg.
fastening method: latched.
standards, specifications, approvals:
standard:
for FM: FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4.
for hazardous zone: EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X.
for safety / from CSA and UL: UL 60950-1, CSA C22.2 No. 60950-1-03.
for emitted interference: EN 61000-6-4:2007 (Class A).
for interference immunity: EN 61000-6-2:2005.
certificate of suitability: EN 61000-6-2:2005, EN 61000-6-4:2007.
CE marking: Yes.
C-Tick: Yes.
KC approval: No.
Marine classification association:
French marine classification society (BV): Yes.
MTBF: 490 a.
reference code:
according to IEC 81346-2:2019: KEC.
