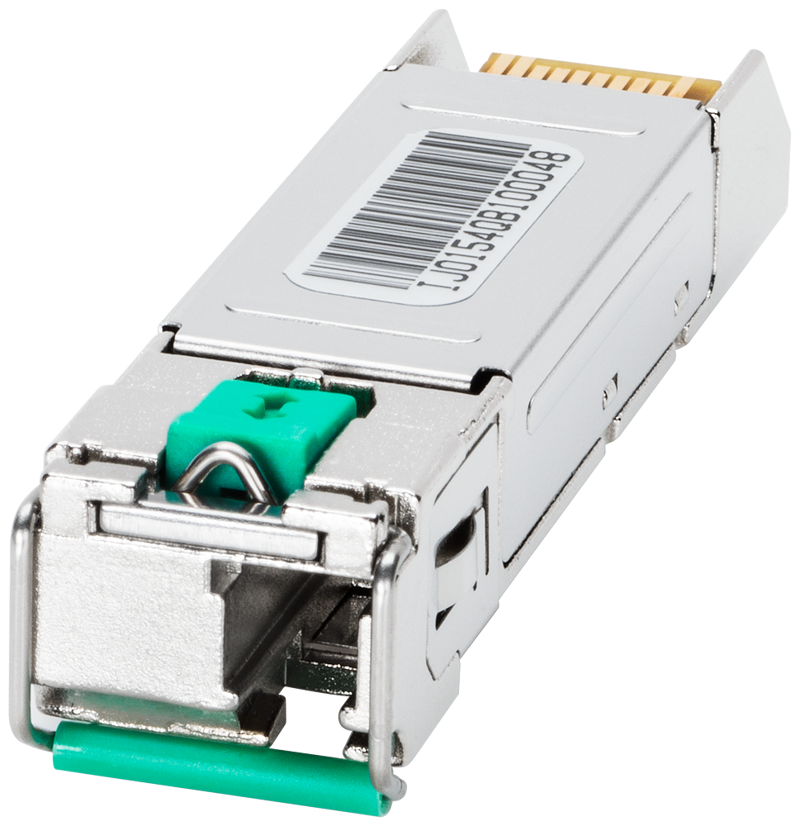

Plug-in transceiver SFP992-1BXMR, 1x 1000 Mbps LC, MM glass, max. 500 m
SKU: 6GK5992-1AL00-8RA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is SFP992-1BXMR.
SCALANCE X accessories includes SFP992-1BXMR, a plug-in transceiver with 1x 1000 Mbit/s LC connector and multimode optical up to 500 m BiDi receive at 1310nm/1550nm.
interfaces:
number of electrical/optical connections / for network components or terminal equipment / maximum: 1.
number of optical interfaces / for network components or terminal equipment / maximum: 1.
number of 1000 Mbit/s LC ports / for multimode / integrated: 1.
design of the optical interface / for network components or terminal equipment: LC.
wavelength / of the optical interface: 1310 nm; Multi-mode.
as transmitter: 1310 nm.
as receiver: 1550 nm.
connectable optical power relative to 1 mW:
of the transmitter output / minimum: -10 dB.
of the transmitter output / maximum: -4 dB.
of the receiver input / maximum: -3 dB.
optical sensitivity relating to 1 mW / of the receiver input / minimum: -17 dB.
attenuation factor / of the FOC transmission link / minimum necessary: 0 dB.
range / at the optical interface / depending on the optical fiber used: 0.35 ... 0.5 km.
transmission method / for connection type 1: 1000BASE-BX.
Buy currently uses Select Automation shop pricing and checkout.
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: SFP Module.
width: 14 mm.
height: 9 mm.
depth: 57 mm.
net weight: 0.02 kg.
fastening method: latched.
standards, specifications, approvals:
standard:
for hazardous zone: EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X.
for safety / from CSA and UL: UL 60950-1, CSA C22.2 No. 60950-1-03.
for emitted interference: EN 61000-6-4:2007 (Class A).
for interference immunity: EN 61000-6-2:2005.
certificate of suitability: EN 61000-6-2:2005, EN 61000-6-4:2007.
CE marking: Yes.
C-Tick: Yes.
KC approval: No.
CCC / for hazardous zone according to GB standard: Yes; GB3836.1, GB3836.8.
CCC / for hazardous zone according to GB standard / as marking: Ex nA IIC T4 Gc.
MTBF: 340 a.
reference code:
according to IEC 81346-2:2019: KEC.
