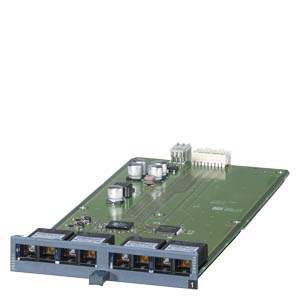

Media module MM992-4LD, 4x 1000 Mbps SC, SM glass, max. 10 km
SKU: 6GK5992-4AM00-8AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE X accessories; Media module MM992-4LD; 4x 1000 Mbit/s SC-ports, optical; single-mode optical up to 10 kilometres.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of electrical/optical connections / for network components or terminal equipment / maximum: 4.
Number of optical interfaces / for network components or terminal equipment / maximum: 4.
Number of 100 Mbit/s ST(BFOC) ports / for multimode / integrated: 4.
Design of the optical interface / for network components or terminal equipment: SC.
Range / at the optical interface / depending on the optical Fiber used: 0 ... 10 km.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: Media module.
Width: 120.3 mm.
Height: 22.3 mm.
Depth: 275.5 mm.
Fastening method: latched, installation in media module slot.
