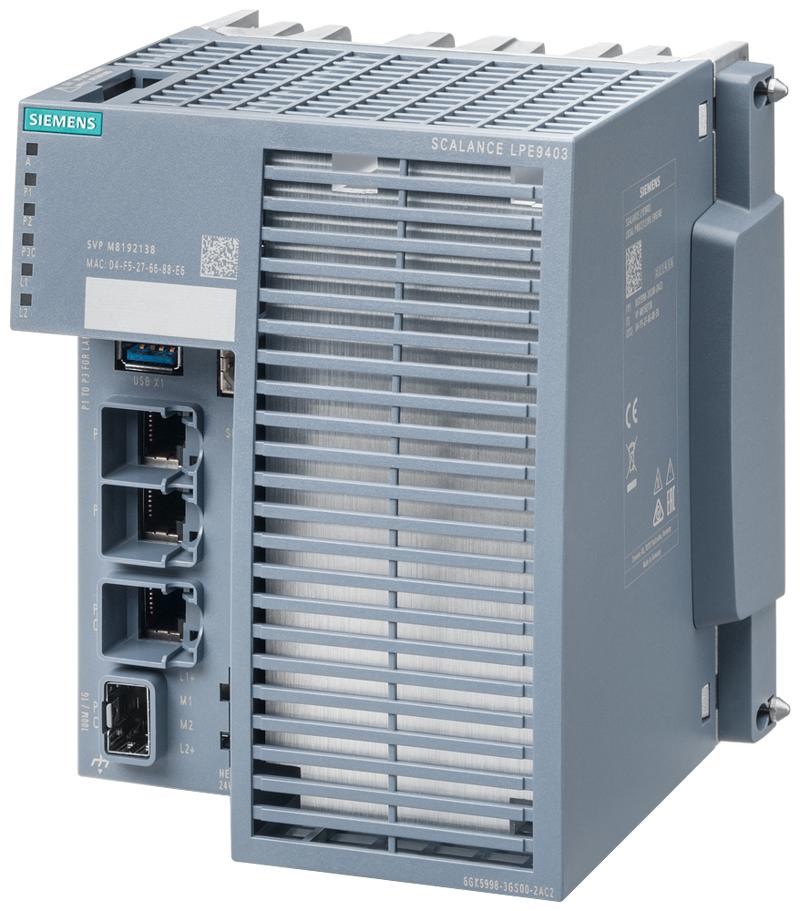

SCALANCE LPE9403, Local Proc. Engine, 10/100/100MBit/s RJ45, 100/1000MBit/s SFP
SKU: 6GK5998-3GS00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is LPE9403.
The SCALANCE LPE9403 features a 64-bit ARMv8 (4-core) processor, 4 GB of RAM, 40 GB of eMMC (pSLC), Debian Linux, 3x 10/100/1000 Mbps RJ45, 1x 100/1000 Mbps SFP, 1 combo port, 1x USB3.0, CLP slot, diagnostics LED, and a redundant power supply.
Assembly: DIN rail with S7 mounting rail.
hardware configuration:
design of the processor: 64Bit ARMv8 A53, 4 core.
processor clock frequency: 1.4 GHz.
design of the drive/storage medium / solid-state disk: Yes; eMMC (pSLC).
storage capacity / on solid-state disk: 38 Gibyte.
storage capacity / of the RAM: 4 Gibyte.
operating system / pre-installed: Debian Linux.
product component / operating system / docker: Yes.
transfer rate:
transfer rate: 10, 100, 1000 Mbit/s.
interfaces / for communication / integrated:
number of 10/100/1000 Mbit/s RJ45 ports / integrated / with securing collar: 3.
number of combo ports / with RJ45 interface for optical plug-in transceiver: 1; 100 or 1000 Mbit/s SFP plug-in transceiver.
interfaces / other:
number of interfaces / according to USB: 2.
number of USB-A ports: 1.
number of USB-B ports: 1.
design of the removable storage / CLP: Yes.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 16 W.
supply voltage / 1 / rated value: 19.2 ... 28.8 V.
consumed current / 1 / maximum: 0.66 A.
type of electrical connection / 1 / for power supply: 4-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 3.15 A / 125 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +60 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 134 mm.
height: 147 mm.
depth: 127 mm.
net weight: 1.6 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
wall mounting: Yes.
