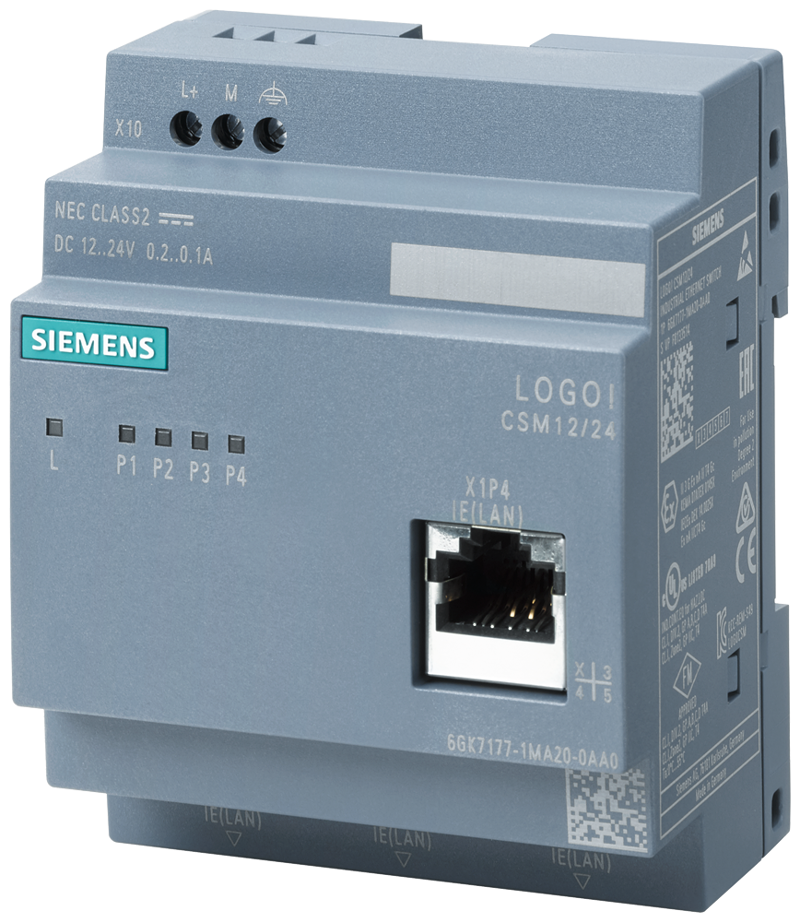

CSM12/24 Compact Switch Module connection of a LOGO
SKU: 6GK7177-1MA20-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LOGO! CSM12/24 Compact Switch Module connects a LOGO! (..0BA7/...0BA8) and up to three additional nodes to Ind. Ethernet with 10/100 Mbit/s.
It is an unmanaged switch with four RJ45 ports and one front port for diagnostics.
DC 12/24V power supply for LED diagnostics and logo setting.
product type designation:
product brand name: LOGO!
product type designation: CSM 12/24.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 4.
number of 100 Mbit/s SC ports:
for multimode: 0.
interfaces / other:
number of electrical connections:
for power supply: 1.
type of electrical connection:
for power supply: 3-pole terminal block.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 1.5 W.
supply voltage / 1 / rated value: 10.2 ... 30.2 V.
consumed current / 1 / maximum: 0.15 A.
type of electrical connection / 1 / for power supply: 3-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
ambient conditions:
ambient temperature:
during operation: 0 ... 55 °C.
during storage: -40 ... +40 °C.
during transport: -40 ... +70 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: LOGO! module.
width: 71.5 mm.
height: 90 mm.
depth: 58.2 mm.
net weight: 0.15 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
