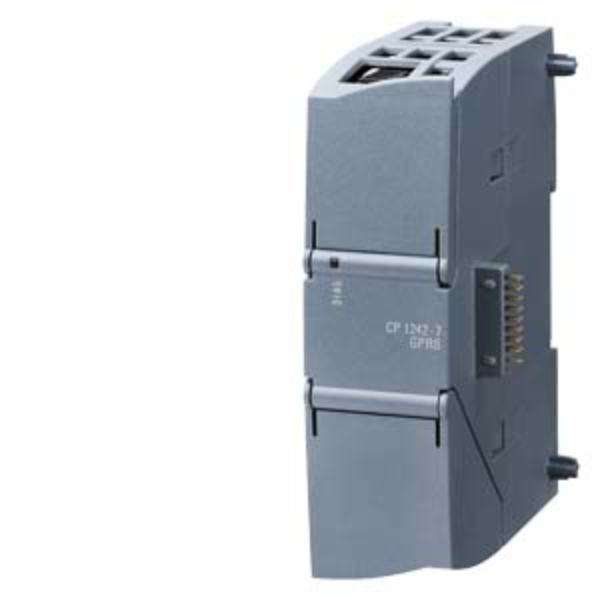

Siemens S7-1200 Mobile Wireless CP 1242-7 GPRS
SKU: 6GK7242-7KX31-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC
Supply voltage / external: 24 V
Supply voltage / external / at DC / rated value: 24 V
Relative positive tolerance / at DC / at 24 V: 20 %
Relative negative tolerance / at DC / at 24 V: 20 %
Consumed current from external supply voltage / at DC / at 24 V / typical: 0.1 A
From external supply voltage / at DC / at 24 V / maximum: 0.22 A
Power loss [W]: 2.4 W
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
For GPRS transmission with downlink / maximum: 86 kbit/s
With uplink / maximum: 43 kbit/s
Interfaces:
Number of interfaces / according to Industrial Ethernet: 0
Number of electrical connections for external antenna(s): 1
For power supply: 1
Number of slots:
For SIM cards: 1
Type of electrical connection:
For external antenna(s): SMA socket (50 ohms)
For power supply: 3-pole terminal block
Slot version for SIM card: Standard
Ambient temperature:
For vertical installation / during operation: -20 ... +60 °C
For horizontally arranged busbars / during operation: -20 ... +70 °C
During storage: -40 ... +70 °C
During transport: -40 ... +70 °C
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %
Protection class IP: IP20
Design, dimensions and weights:
Module format: Compact module S7-1200 single width
Width: 30 mm
Height: 100 mm
Depth: 75 mm
Net weight: 0.133 kg
