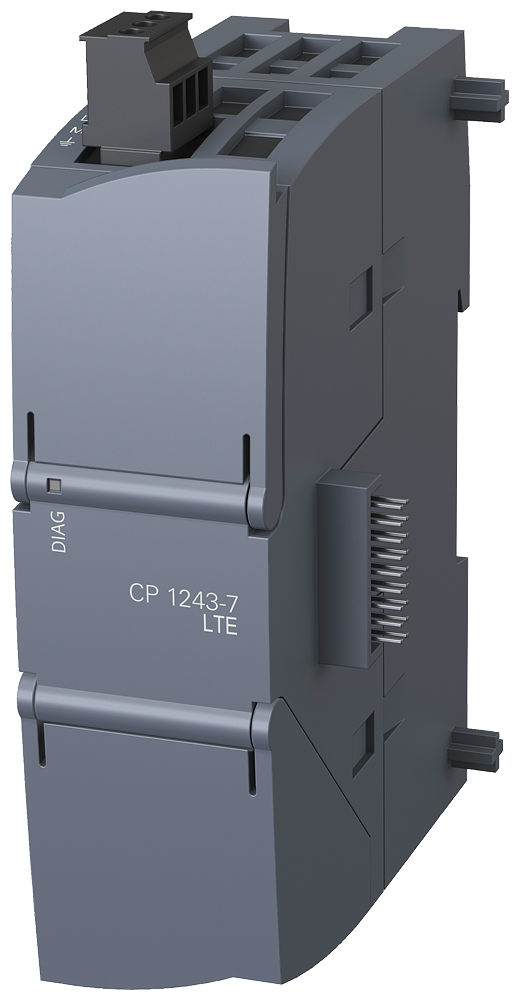

Communication processor CP 1243-7 LTE EU, SIMATIC S7-1200 connection to LTE

Specifications: Transfer rate for LTE transmission: With downlink / maximum: 42 Mbit/s. With uplink / maximum: 5.76 Mbit/s. Number of interfaces / according to Industrial Ethernet: 0. Number of electrical connections: For external antenna(s): 1. For power supply: 1. Number of slots for SIM cards: 1. Type of electrical connection: For external antenna(s): SMA socket (50 ohms). For power supply: 3-pole terminal block. Slot version for SIM card: Standard. Type of mobile wireless service / is supported: SMS. GPRS. Type of wireless network / is supported: GSM. UMTS. LTE. Operating frequency / for GSM transmission: 900 MHz, 1800 MHz Operating frequency / with UMTS transmission: 900 MHz, 2100 MHz Operating frequency / for LTE transmission: 800 MHz, 1800 MHz, 2600 MHz Type of voltage / of the supply voltage: DC. Supply voltage / external: 24 V. Supply voltage / external / at DC / rated value: 24 V. Consumed current: From external supply voltage / at DC / at 24 V / typical: from external supply voltage / at DC / at 24 V / typical. From external supply voltage / at DC / at 24 V / maximum: 0.22 A. Ambient temperature: For vertical installation / during operation: -20 ... +60 °C. For horizontally arranged busbars / during operation: -20 ... +70 °C. During storage: -40 ... +70 °C. During transport: -40 ... +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %. Protection class IP: IP20. Module format: Compact module S7-1200 single width. Width: 30 mm. Height: 100 mm. Depth: 75 mm. Fastening method: 35 mm top hat DIN rail mounting. Wall mounting. Number of units per CPU / maximum: 3. Configuration software required: STEP 7 Basic/Professional.
