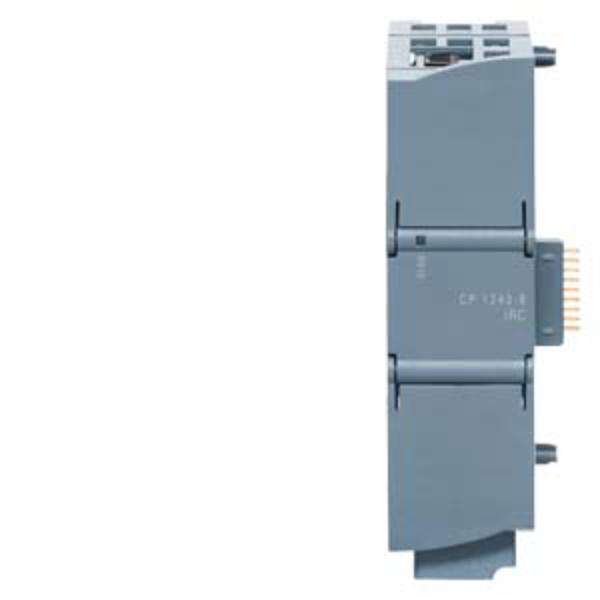

Siemens S7-1200 Ethernet/Telecontrol CP 1243-8 IRC Telecontrol Protocols
SKU: 6GK7243-8RX30-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Communications processor CP 1243-8 IRC for operating a SIMATIC S7-1200:
Station type: RTU
WAN connections;1) Ethernet 2) Additionally expandable with TS module RS-232 or TS module modem or TS module GSM or TS module ISDN
Operation with TIM modules possible.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC
Supply voltage / 1 / from backplane bus: 5 V
Supply voltage / external: 24 V
Supply voltage / external: 19.2 ... 28.8 V
Supply voltage / external / at DC / rated value: 24 V
Supply voltage / external / at DC / rated value: 19.2 ... 28.8 V
Consumed current:
From backplane bus / at DC / at 5 V / typical: 0.25 A
From external supply voltage / at DC / at 24 V / typical: 0.1 A
Power loss [W]: 2.4 W; 1.25 W from S7-1200 backplane without TS module. 2.4 W from 24 V
DC external with TS module
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
At the 1st interface: 10 ... 100 Mbit/s
At the 2nd interface: 0.3 ... 115.2 kbit/s
Interfaces:
Number of interfaces / according to Industrial Ethernet: 1
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 1
For power supply: 1
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port
Type of electrical connection:
At interface 2 / for external data transmission: Interface to the TS Module
For power supply: 3-pole terminal block
Ambient temperature:
For vertical installation / during operation: -20 ... +60 °C
For horizontally arranged busbars / during operation: -20 ... +70 °C
During storage: -40 ... -70 °C
During transport: -40 ... +70 °C
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %
Protection class IP: IP20
Design, dimensions and weights:
Module format: Compact module S7-1200 single width
Width: 30 mm
Height: 110 mm
Depth: 75 mm
Net weight: 0.122 kg
