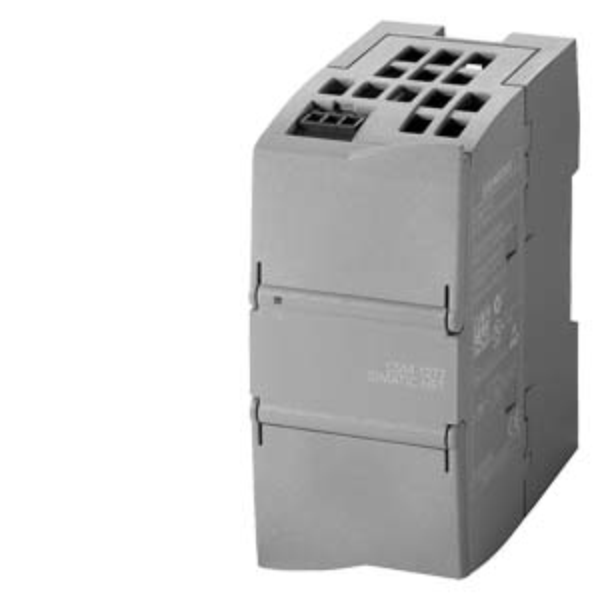

Siemens S7-1200 Compact Switch Module CSM 1277
SKU: 6GK7277-1AA10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module enables Ethernet connectivity for S7-1200 systems, supporting up to four RJ45 ports at 10/100 Mbit/s.
It’s ideal for expanding industrial networks in cost-sensitive, space-constrained, or non-managed environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Ports: 4 × RJ45 (10/100 Mbit/s).
Power Supply: 24 V DC (19.2–28.8 V range).
Power Loss: 1.6 W.
Mounting Options: DIN rail, wall mount.
Dimensions (W×H×D): 45 × 100 × 75 mm.
Weight: 0.15 kg.
Protection Class: IP20.
Operating Temp Range: 0 to 60 °C.
MTBF: 273 years (impressive longevity).
Functional Highlights:
Unmanaged Switch: Plug-and-play simplicity—no configuration needed.
LED Diagnostics: Basic status indicators for quick troubleshooting.
PRP Support: Operates in Parallel Redundancy Protocol networks.
No Multiport Mirroring or Management: Streamlined for basic use cases.
Compliance & Certifications:
CE, UKCA, UL, RCM, RoHS.
Hazardous Location: ATEX, IECEx, FM, CCC.
Marine Classification: RINA only.
EMC Standards: EN 61000-6-4 (Class A), EN 61000-6-2.
Environmental Product Declaration (EPD): Yes.
Global Warming Potential: 65.14 kg CO₂ eq (lifecycle total).
