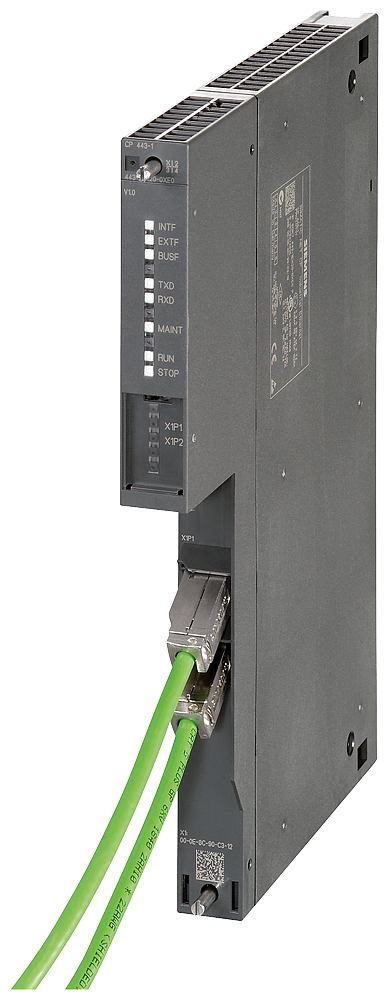

Communications processor CP 443-1, connection SIMATIC S7-400 to IE
SKU: 6GK7443-1EX30-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 443-1.
The communications processor CP 443-1 has 2x 10/100 Mbit/s (IE switch), RJ45 ports, ISO, TCP, UDP, and a PROFINET IO controller.
It supports S7 communication, open communication (SEND/RECEIVE), S7 routing, IP configuration via DHCP/Block, IP access control list, time-of-day synchronization, extended web diagnostics, fast startup, and PROFIenergy support.
Transfer rate:
Transfer rate:
At the 1st interface: 10 ... 100 Mbit/s.
Interfaces:
Number of interfaces / according to Industrial Ethernet: 2.
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 2
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port.
Design of the removable storage:
C-PLUG: No.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage / 1 / from backplane bus: 5.
Relative symmetrical tolerance / at DC:
At 5 V: 5 %.
Consumed current:
From backplane bus / at DC / at 15 V / typical: 1.4 A.
Power loss [W]: 7.25 W.
Ambient conditions:
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
At 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
Module format: Compact module S7-1500 single width.
Width: 25 mm.
Height: 290 mm.
Depth: 210 mm.
Net weight: 0.7 g.
Product features, product functions, product components / general:
Number of units:
Per CPU / maximum: 14.
Note: max. 4 as PN IO ctrl.
