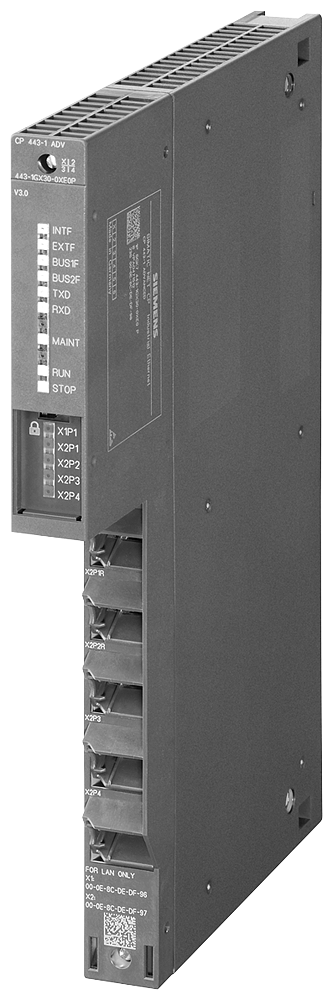

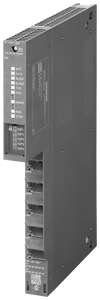

Communications processor CP 443-1 Advanced, connection SIMATIC S7-400 to IE
SKU: 6GK7443-1GX30-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 443-1 Advanced.
Communications processor CP 443-1 Advanced supports 1x 10/100/1000 Mbps and 4x 10/100 Mbps (IE switch).
RJ45 ports, ISO, TCP/UDP, PROFINET IO controller, S7 communication, and open communication (send/receive).
Features include S7 routing, IP configuration via DHCP/block, IP access control list, time-of-day synchronization, enhanced web diagnostics, Fast Startup, PROFIenergy support, IP routing, FTP, web server, and email.
Transfer rate:
Transfer rate:
At the 1st interface: 10 ... 1000 Mbit/s.
At the 2nd interface: 10 ... 100 Mbit/s.
Interfaces:
Number of interfaces / according to Industrial Ethernet: 5.
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 1.
At the 2nd interface / according to Industrial Ethernet: 4.
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port.
At the 2nd interface / according to Industrial Ethernet: RJ45 port.
Design of the removable storage:
C-PLUG: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage / 1 / from backplane bus: 5 V.
Relative symmetrical tolerance / at DC:
At 5 V: 5 %.
Consumed current:
from backplane bus / at DC / at 5 V / typical: 1.8 A.
power loss [W]: 9 W.
Ambient conditions:
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
module format: Compact module S7-400 single width.
Width: 25 mm.
Height: 290 mm.
Depth: 210 mm.
Net weight: 0.7 g.
Product features, product functions, product components / general:
Number of units:
Per CPU / maximum: 14.
note: max. 4 as PN IO ctrl.
