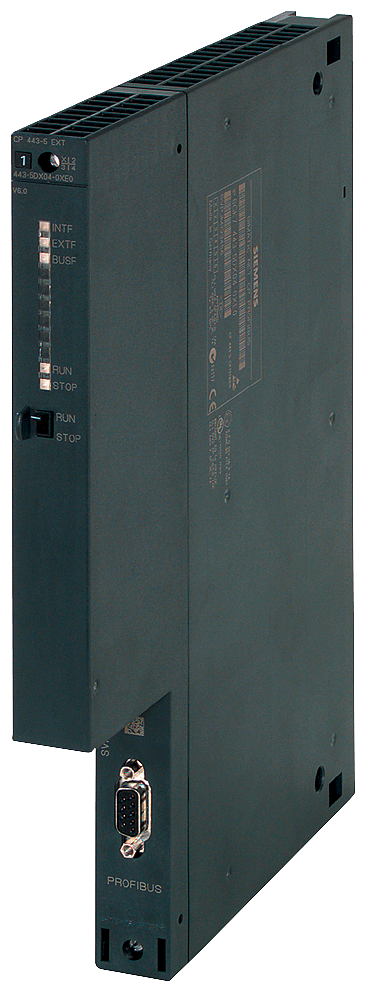

Communication processor CP 443-5 Ext., SIMATIC S7-400 connection to PROFIBUS DP
SKU: 6GK7443-5DX05-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Communications processor CP 443-5.
SIMATIC S7-400 connectivity to PROFIBUS DP has been extended to include S5 compatibility, PG/OP, and S7 communication.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface / according to PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Number of interfaces / according to Industrial Ethernet: 0.
Number of electrical connections at the 1st interface / according to PROFIBUS: 1.
Type of electrical connection at the 1st interface / according to PROFIBUS: 9-pin Sub-D socket (RS485).
Type of voltage / of the supply voltage: DC.
Supply voltage / 1 / from backplane bus: 5 V.
Consumed current from backplane bus / at DC / at 5 V / typical: 0.6 A.
Power loss: 3 W.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Module format: Compact module S7-400 single width.
Width: 25 mm.
Height: 290 mm.
Depth: 210 mm.
