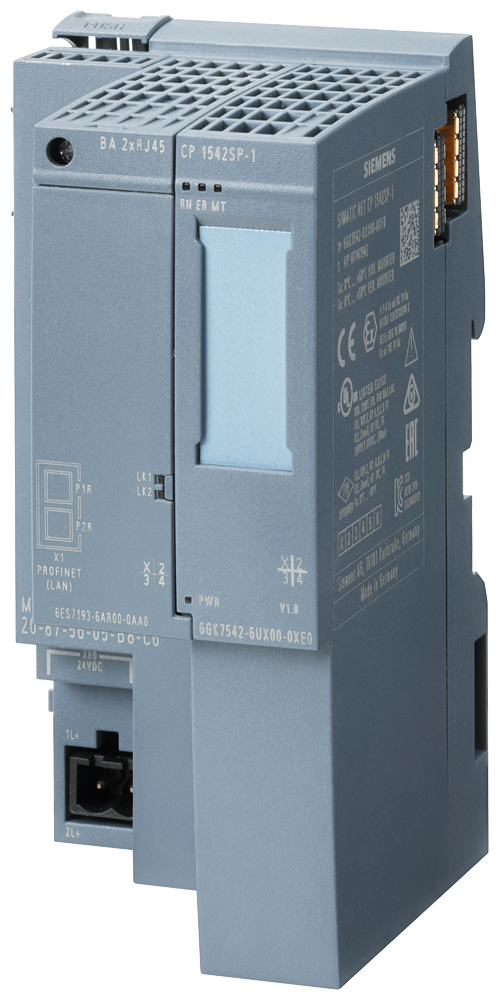

Communications processor CP 1542SP-1, connection SIMATIC S7-ET 200SP to IE
SKU: 6GK7542-6UX00-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 1542SP-1.
The SIMATIC S7-ET 200SP can be connected to Industrial Ethernet using the CP 1542SP-1 communications processor.
It supports open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to the CPU's web server, and bus adapter.
Transfer rate:
Transfer rate:
At the 1st interface: 10 ... 100 Mbit/s.
Interfaces:
Number of interfaces / according to Industrial Ethernet: 1.
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 2
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
Supply voltage: 24.
supply voltage: 19.2 ... 28.8 V.
Power loss [W]: 6 W.
Ambient conditions:
Ambient temperature:
For vertical installation / during operation: -30 ... +50 °C.
For horizontally arranged busbars / during operation: -30 ... +60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
Width: 60 mm.
Height: 117 mm.
Depth: 74 mm.
Net weight: 0.18 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
Product features, product functions, product components / general:
Number of units:
Per CPU / maximum: 2.
note: 2 CPs can be plugged in per CPU, simultaneous operation with BA Send and CM DP is possible.
