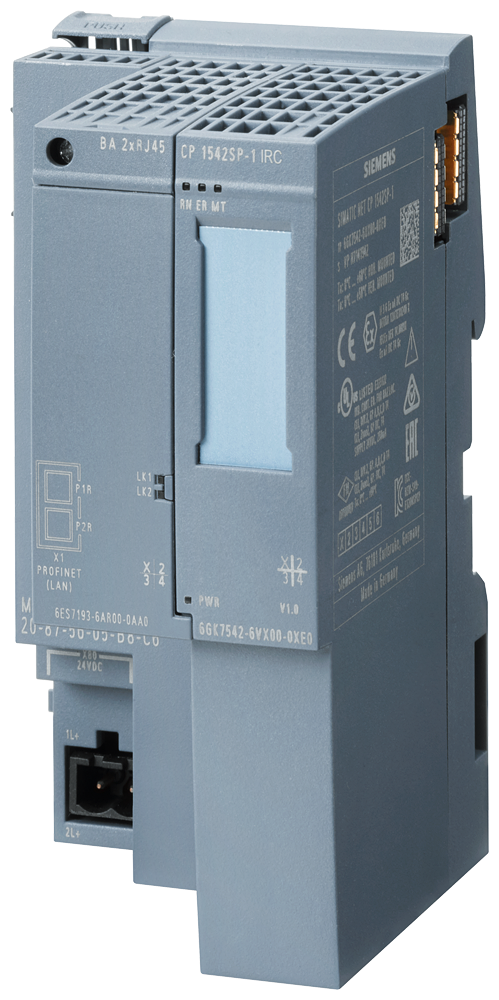

Communications processor CP 1542SP-1 IRC, connection SIMATIC S7-ET 200SP to IE
SKU: 6GK7542-6VX00-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Communications Processor CP 1542SP-1 IRC for connecting a SIMATIC S7 ET 200SP to an Industrial Ethernet, SINAUT ST7, Telecontrol Server Basic, IEC 60870-5-104, or DNP3 protocol to a control Scenter; Open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6, support for SINEMA Remote Connect with autoconfiguration; time-of-day synchronization via NTP, access to the CPU's web server, Bus Adapter required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate at the 1st interface: 10 ... 100 Mbit/s.
Number of interfaces / according to Industrial Ethernet: 1.
Number of electrical connections at the 1st interface / according to Industrial Ethernet: 2.
Type of electrical connection at the 1st interface / according to Industrial Ethernet: via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch.
Type of voltage / of the supply voltage: DC.
Supply voltage: 24 V.
Power loss: 6 W.
Ambient temperature:
For vertical installation / during operation: -30 ... +50 °C.
For horizontally arranged busbars / during operation: -30 ... +60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Width: 60 mm.
Height: 117 mm.
Depth: 74 mm.
Fastening method: 35 mm top hat DIN rail mounting.
Number of units per CPU / maximum: 2.
