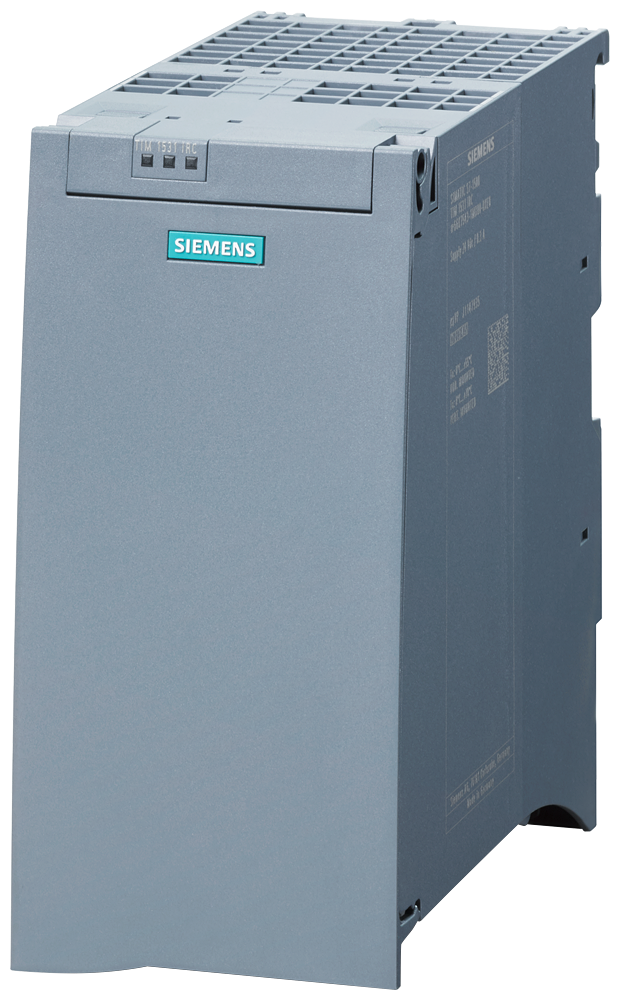

Communication module SINAUT ST7 TIM 1531 IRC, for S7-1500, S7-400, S7-300

Specifications: Transfer rate: At the 1st interface: 10 ... 1000 Mbit/s. At the 2nd interface: 10 ... 100 Mbit/s. At the 3rd interface: 10 ... 100 Mbit/s. According to RS 232: 300 ... 115200 bit/s. Number of interfaces / according to Industrial Ethernet: 3. Number of electrical connections: For external data transmission / according to RS 232: 1. For power supply: 1. Number of slots for memory cards: 1. Type of electrical connection of Industrial Ethernet interface: RJ45 port. Type of electrical connection: At interface 1 / for external data transmission: 9 pin Sub-D-connector, RS232 switchable to RS485. For power supply: 2-pole pluggable terminal block. Slot version of the memory card: SD 1.0, SD 1.1, SDHC, Siemens SMC. Storage capacity / of the memory card / maximum: 32 Gi byte. Type of voltage / of the supply voltage: DC. Supply voltage: 24 V. Supply voltage / external / at DC / rated value: 24 V. Consumed current: From external supply voltage / at DC / at 24 V / typical: 0.15 A. From external supply voltage / at DC / at 24 V / maximum: 0.3 A. Power loss [W] / with external supply voltage / at 24 V DC: In update mode / typical: 3.9 W. In communication mode / typical: 3.9 W. Ambient temperature: During operation: 0 ... 70 °C. For vertical installation / during operation: 0 ... 50 °C. Or horizontally arranged busbars / during operation: 0 ... 70 °C. During storage: -40 ... +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %. Protection class IP: IP20. Module format: Compact module S7-1500 double-wide. Width: 70 mm. Height: 147 mm. Depth: 129 mm. Fastening method: S7-1500 rail mounting. Wire length: With RS 232 interface / maximum: 6 m. With RS 485 interface / maximum: 30 m.
