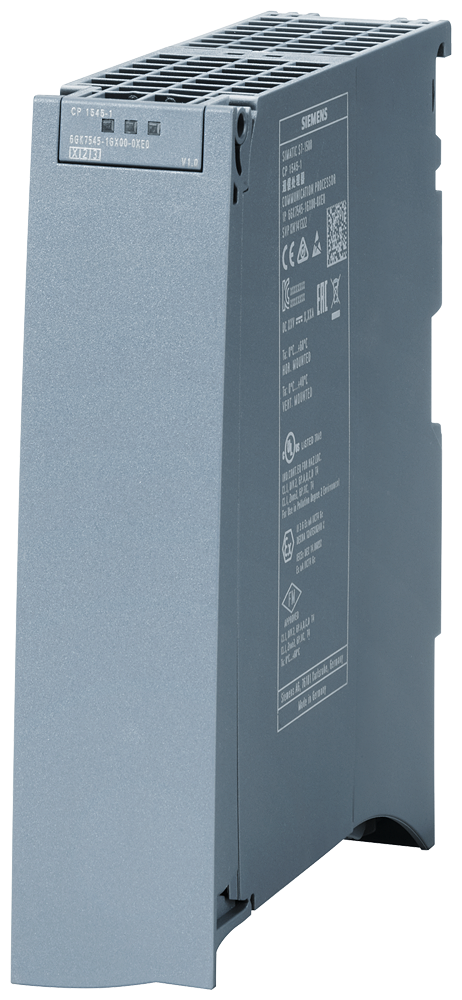

communications processor CP 1545-1
SKU: 6GK7545-1GX00-0XE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: CP 1545-1.
SIMATIC S7-1500 can be connected to Industrial Ethernet, TCP/IP, UDP, S7 communication, Security (firewall), SNMPv1/v3, DHCP, FTP client/server, email, IPv4/IPv6, time-of-day synchronization via NTP, cloud system connection via MQTT, and 1x RJ45 (10/100/1000 Mbit/s).
Transfer rate:
Transfer rate:
At the 1st interface: 10 ... 1000 Mbit/s.
Interfaces:
Number of interfaces / according to Industrial Ethernet: 1.
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 2
Type of electrical connection:
At the 1st interface / according to Industrial Ethernet: RJ45 port.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: DC.
supply voltage / 1 / from backplane bus: 15.
relative symmetrical tolerance / at DC:
at 15 V: 3 %.
consumed current:
from backplane bus / at DC / at 15 V / typical: 0.3 A.
power loss [W]: 4.5 W.
Ambient conditions:
Ambient temperature:
For vertical installation / during operation: 0 ... 40 °C.
For horizontally arranged busbars / during operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
module format: Compact module S7-1500 single width.
Width: 35 mm.
Height: 142 mm.
Depth: 129 mm.
Net weight: 0.32 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
Product features, product functions, product components / general:
Number of units:
Per CPU / maximum: 8.
note: depending on CPU type.
