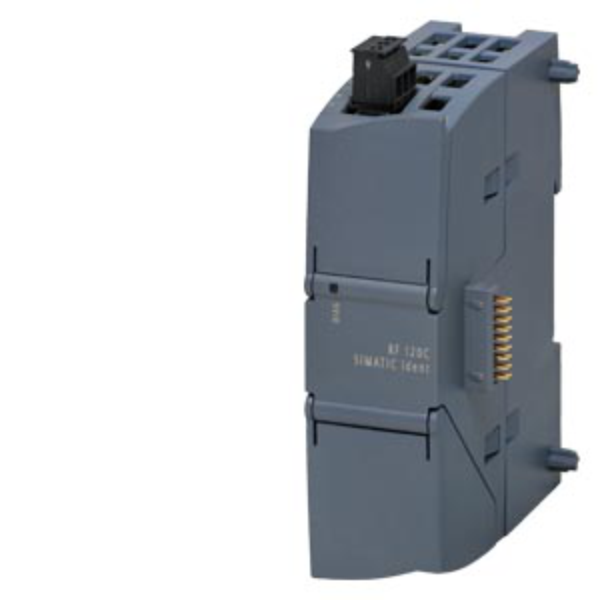

Siemens S7-1200 RF120C Identification
SKU: 6GT2002-0LA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
RFID communication module RF120C for SIMATIC S7-1200; 1 reader connectable; RS-422 or RS232:
Supply voltage, current consumption, power loss.
Supply voltage / at: DC
Rated value: 24 V/ 20 ... 30 V
Consumed current:
At DC / at 24 V / without connected devices / typical: 0.03 A
From supply voltage 1L+ / maximum: 1 A
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
Transfer rate / at the point-to-point connection / serial / maximum: 115.2 kbit/s
Interfaces:
Design of the interface / for point-to-point connection: RS422/RS232
Number of readers / connectable: 1
Type of electrical connection:
Of the backplane bus: S7-1200 backplane bus
For supply voltage: Screw terminals
Design of the interface / to the reader / for communication: sub-D, 9-pin, female
Mechanical data:
Material: Xantar MX 1094
Color: Ti-grey 24L01
Tightening torque / of the screw for securing the equipment / maximum: 0.45 N·m
Ambient temperature:
During operation: 0 ... 55 °C
During storage: -40 ... +70 °C
During transport: -40 ... +70 °C
Protection class IP: IP20
Shock resistance: According to IEC 61131-2
Shock acceleration: 300 m/s²
Vibrational acceleration: 100 m/s²
Design, dimensions and weights:
Width: 30 mm
Height: 100 mm
Depth: 75 mm
Net weight: 0.15 kg
Fastening method: S7-1200 rack
Wire length / for RS 422 interface / maximum: 1000 m
