Basic device RF160B
SKU: 6GT2003-0FA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

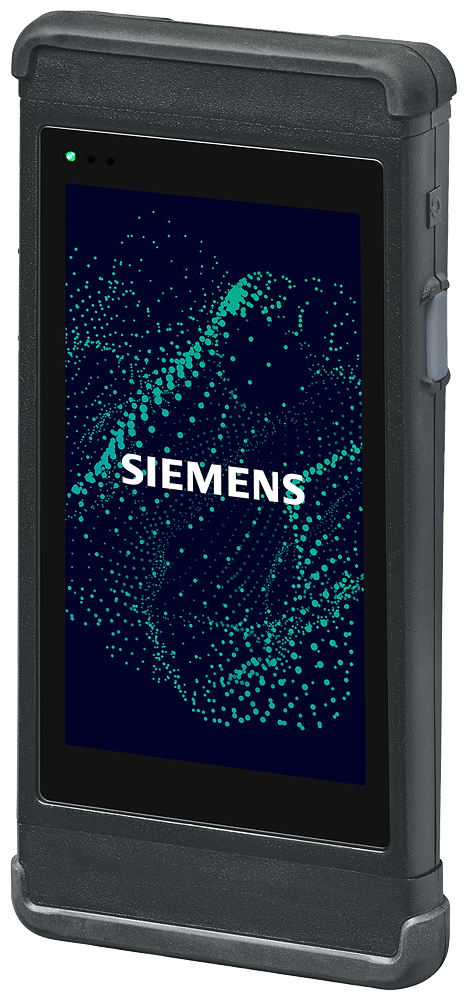

The product type designation is RF160B mobile handheld terminal (basic device).
The SIMATIC RF160B RFID mobile reader is a simple device for RF200/300 (HF) and RF600 (UHF) frequencies, with user software and a rechargeable battery. It does not require a charging or docking station.
suitability for operation: for RFID modules RF360H/RF660H.
optical data:
design of image sensor / of the camera: OV5645 (5 MP).
fastening method / of lens: Integrated.
type of light source: LED.
picture recording frequency / maximum: 60 Hz.
type of focusing: autofocus.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
type of current supply: Battery operation or mains operation via docking station.
type of battery: Lithium-ion accumulator, fast charging capability.
type of battery / as back-up battery / integrated: supercapacitor; 10 F; 2.7 V.
battery capacity: 6 A·h.
operating period / with standard battery / typical: 9.5 h.
ambient conditions:
ambient temperature:
during operation: -20 ... +50 °C.
during storage: -20 ... +60 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
height of fall / maximum: 1.2 m.
protection class IP: IP65.
design, dimensions and weights:
width: 82 mm.
height: 174 mm.
depth: 28 mm.
net weight: 0.4 kg.
product features, product functions, product components / general:
design of the display: 4.8" TFT colour display with LED backlight, 1280 x 720 pixels.
operator element version: 2 keys and touch display.
design of acoustic signalling element: micro speaker.
design of the interface: WLAN, USB and Ethernet via charging station.
storage capacity:
of the RAM: 2000 Mibyte.
of the data and program memory: 16000 Mibyte.
product functions / management, configuration, engineering:
operating system / pre-installed: Android 9.0, modified.
product function / of the software: App for RFID functionality HF+UHF.
type of programming: API available.
standards, specifications, approvals:
certificate of suitability: RE Directive 2014/53/EU.
reference code:
according to IEC 81346-2:2019: BYB.
accessories:
accessories charging/docking station with USB and Ethernet interface, spare battery , pistol handle.
