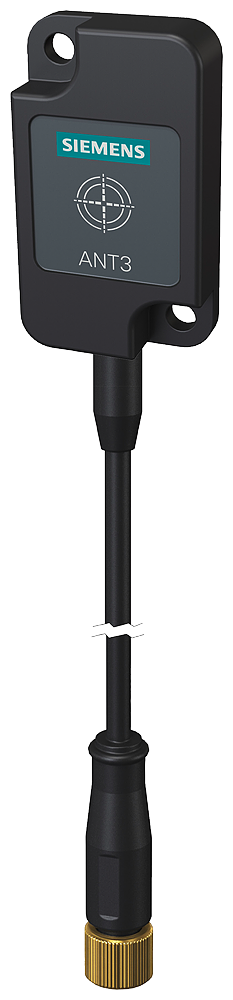

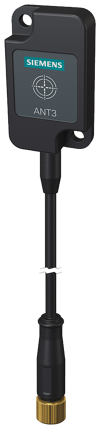

Antenna ANT 3, RF200/RF300, for RF250R/RF350R/RF350M, IP67
SKU: 6GT2398-1CD30-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: Antenna ANT 3.
RF300/RF200 antenna ANT 3 for connection to RF250R, RF350R, and RF350M. IP67, -25 to +70 °C, 50x28x10 mm.
suitability for operation: RF250R / RF350R / RF350M.
radio frequencies:
operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
type of electrical connection / of the antenna: M8, 4-pin.
design of plug-in connection: Female.
mechanical data:
material: PA6 V0.
colour: black.
tightening torque / of the screw for securing the equipment / maximum: 1 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP67.
shock resistance: according to EN 60721-3-7 Class 7M2.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
width: 28 mm.
height: 50 mm.
depth: 10 mm.
net weight: 35 g.
fastening method: 2 x M4 screws.
standards, specifications, approvals:
certificate of suitability: CE, FCC, IC, cULus.
certificate of suitability:
IECEx: Yes.
for IECEx / as marking: the ATEX approval of the connected reader applies.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Included: Antenna cable.
