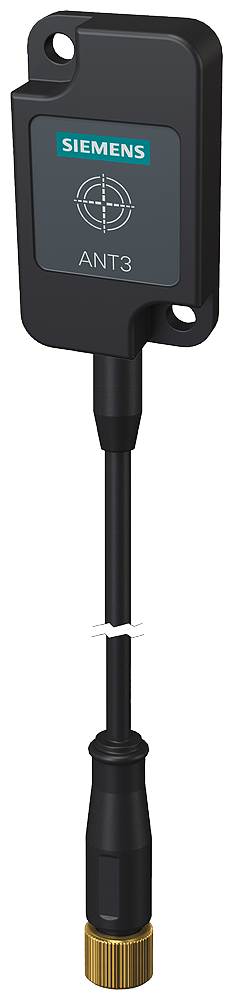

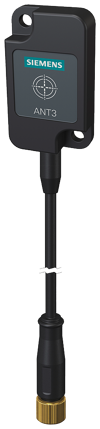

Antenna ANT 3, RF200/RF300, for RF250R/RF350R, IP67, 3 m cable
SKU: 6GT2398-1CD40-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: Antenna ANT 3 including a antenna cable.
RF300/RF200 antenna ANT 3 for use with RF250R and RF350R IP67, -25 to +70 °C.
Dimensions: 50x28x10 mm (with antenna connection cable PUR, UL 758).
Trailing plug M8 straight/angled, length 3 m, includes 1x 6GT23981CD300AX0 and 1x 6GT23910AH30.
suitability for operation: RF250R / RF350R.
radio frequencies:
operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
type of electrical connection / of the antenna: M8, 4-pin.
design of plug-in connection: Male.
mechanical data:
material: PA6 V0.
colour: black.
tightening torque / of the screw for securing the equipment / maximum: 1 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP67.
shock resistance: according to EN 60721-3-7 Class 7M2.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
width: 28 mm.
height: 50 mm.
depth: 10 mm.
net weight: 160 g.
fastening method: 2 x M4 screws.
wire length / of antenna cable: 3 m.
standards, specifications, approvals:
certificate of suitability: CE, FCC, IC, cULus.
certificate of suitability:
IECEx: Yes.
for IECEx / as marking: the ATEX approval of the connected reader applies.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Included: Included: 6GT2391-0AH30 (antenna cable).
