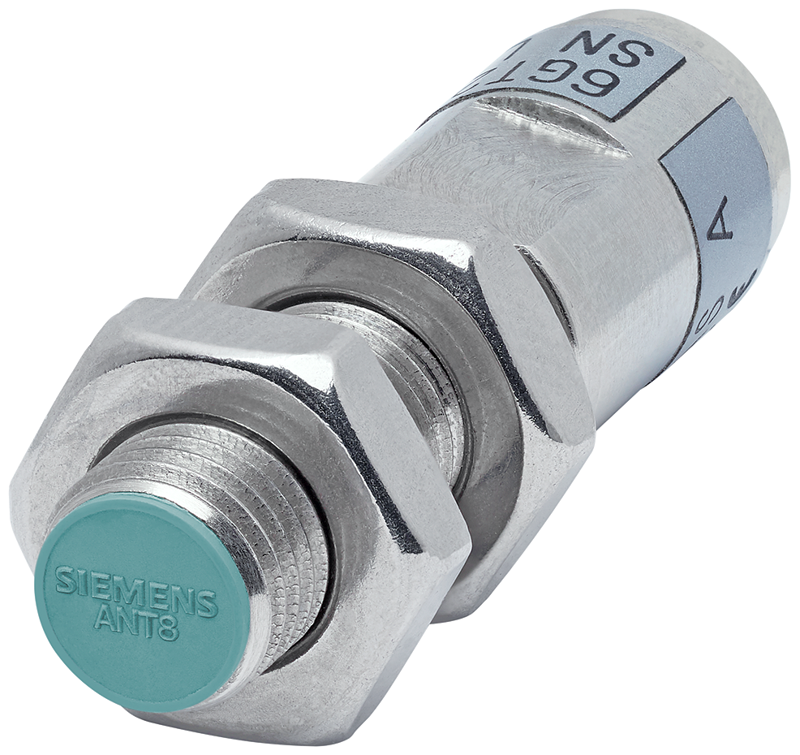

Antenna ANT 8, RF200/RF300, M8-38 mm, IP67
SKU: 6GT2398-1CF00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: Antenna ANT 8.
SIMATIC RF200/RF300 antenna ANT 8 M8x 38 mm, IP67, -25 to +70°C, no connection wire.
Suitability for operation: RF250R / RF350M.
Radio frequencies:
Operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
type of electrical connection / of the antenna: M8, 4-pin.
design of plug-in connection: Female.
mechanical data:
material: Stainless steel V2A.
colour: Silver.
tightening torque / of the screw for securing the equipment / maximum: 3 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP67, front.
shock resistance: according to EN 60721-3-7 Class 7M2
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
depth: 38 mm.
diameter: 8 mm.
net weight: 10 g.
fastening method: 2 stainless steel csrew nuts M8 x 1.0 (included).
standards, specifications, approvals:
certificate of suitability: CE, FCC, IC, cULus.
certificate of suitability:
IECEx: No.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Antenna cable.
