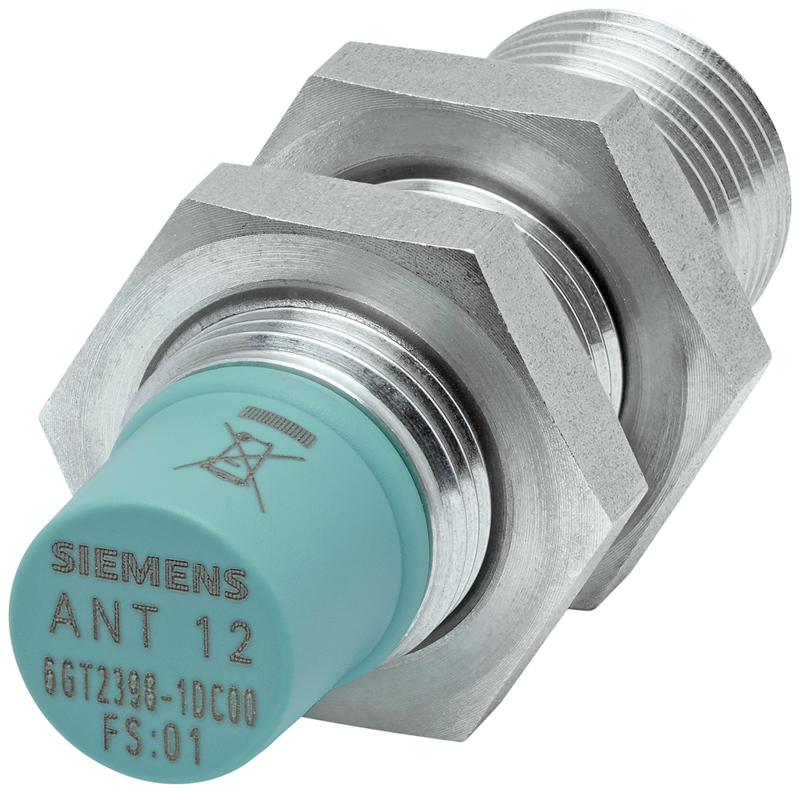

Antenna ANT 12 stainless steel, RF300/RF200, M12x1-40 mm, IP65
SKU: 6GT2398-1DC00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: ANT 12 antenna stainless steel, no cable.
SIMATIC RF300/RF200 antenna ANT 12 stainless steel, -25 to +70 °C, IP65, thread M12x1, length 40 mm; without connecting cable.
suitability for operation: RF250R / RF350R / RF350M
radio frequencies:
operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
type of electrical connection / of the antenna: M8, 4-pin.
design of plug-in connection: female.
mechanical data:
material: Stainless steel V2A.
colour: Silver.
tightening torque / of the screw for securing the equipment / maximum: 3 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP67.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
depth: 40 mm.
diameter: 12 mm.
net weight: 15 g.
fastening method: 2 x stainless steel nuts M12 x 1.
standards, specifications, approvals:
certificate of suitability: CE, cULus.
certificate of suitability:
IECEx: Yes.
for IECEx / as marking: the ATEX approval of the connected reader applies.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Antenna cable.
