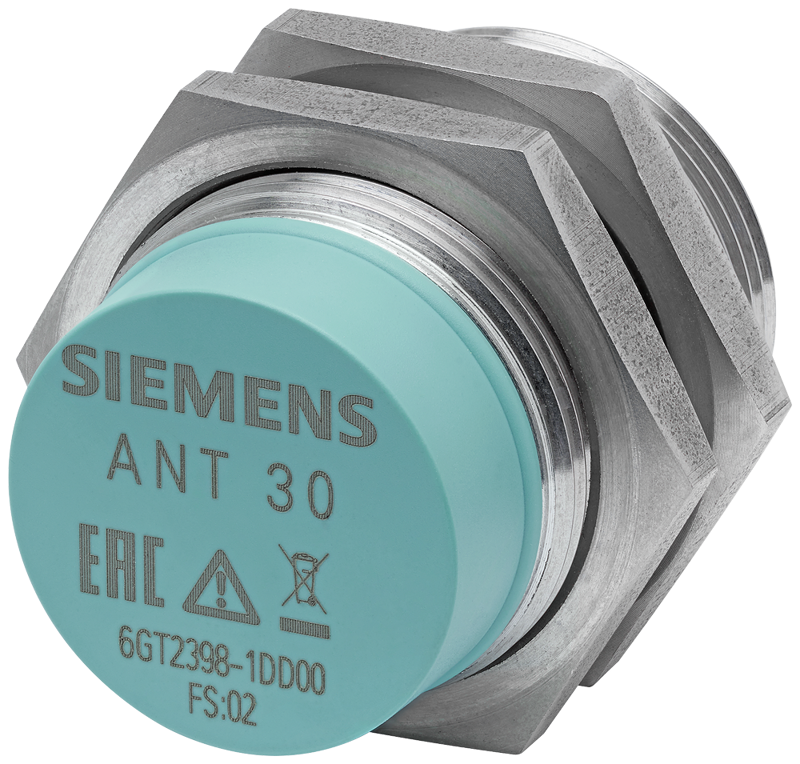

Antenna ANT 30 stainless steel, RF300/RF200, M30x1.5-40 mm, IP65, 3 m cable
SKU: 6GT2398-1DD10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: ANT 30 antenna, stainless steel, with antenna cable.
SIMATIC RF300/RF200 antenna, ANT 30.
Stainless steel, -25 to +70 °C, IP65.
Thread: M30x1.5.
Length: 40 mm.
With trailing antenna wire.
Both ends plug-in PUR, UL 758, length 3 m.
Suitability for operation: RF250R / RF350R / RF350M.
Radio frequencies:
Operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Type of electrical connection / of the antenna: M8, 4-pole (at supplied cable).
Design of plug-in connection: Male.
Mechanical data:
Material: Stainless steel V2A.
Colour: Silver.
Tightening torque / of the screw for securing the equipment / maximum: 3 N·m.
Mounting distance:
Relating to metal surfaces / recommended / minimum: 0 m.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Protection class IP: IP67.
Shock acceleration: 500 m/s².
Vibrational acceleration: 200 m/s².
Design, dimensions and weights:
Depth: 40 mm.
Diameter: 30 mm.
Net weight: 95 g.
Fastening method: 2 x stainless steel nuts M30 x 1.5.
Wire length / of antenna cable: 3 m.
Standards, specifications, approvals:
Certificate of suitability: CE, cULus.
Certificate of suitability:
IECEx: Yes.
For IECEx / as marking: the ATEX approval of the connected reader applies.
Reference code / according to IEC 81346-2:2019: TFB.
Accessories:
Accessories: Included: 6GT2391-0AH30 (antenna cable).
