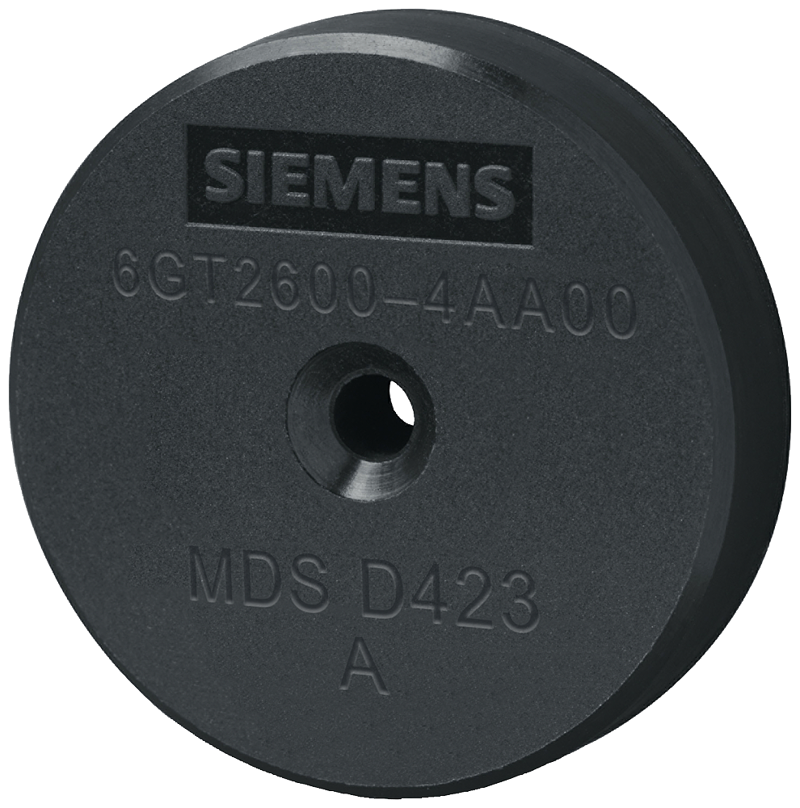

Transponder MDS D423 button, RF200/RF300 ISO, ISO 15693, 2000 byte FRAM
SKU: 6GT2600-4AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: MDS D423 transponder.
Transponder MDS D423 for RF200/RF300 ISO buttons, ISO 15693, FUJITSU MB89R118 chip, 2000 byte FRAM user memory, 30x 8 mm (DxH), minimum order quantity of 10 units.
Suitability for operation: RF200, RF300.
Radio frequencies:
operating frequency / rated value: 13.56 MHz.
range / maximum: 80 mm; range is reader dependent.
protocol / with radio transmission: ISO 15693.
transfer rate / with radio transmission / maximum: 26.5 kbit/s.
product feature / multitag-capable: Yes.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
product component / backup battery: No.
memory:
type of memory: FRAM.
storage capacity / of the user memory: 2000 byte.
type of memory organization: UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes.
number of read cycles / at ambient temperature < 40 °C / maximum: 1E+12.
number of write cycles / at ambient temperature < 40 °C / maximum: 1E+12.
data retention time / at ambient temperature < 40 °C / not less than: 10 a.
property of memory: Block-by-block write protection of the user memory.
type of transponder chip used: Fujitsu MB89R118.
mechanical data:
material: PPS.
colour: black.
tightening torque / of the screw for securing the equipment / maximum: 1 N·m.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
ambient conditions:
ambient temperature:
during read/write access: -25 ... +85 °C.
outside the read/write area: -40 ... +100 °C.
during storage: -40 ... +100 °C.
protection class IP: IP68/IPx9K.
shock resistance: According to DIN EN 60721-3-7 Class 7 M3.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
height: 8 mm.
diameter: 30 mm.
net weight: 15 g.
fastening method: M4 countersunk screw.
product features, product functions, product components / general:
product feature:
silicon-free: Yes.
printable: No.
standards, specifications, approvals:
certificate of suitability:
IECEx: No.
MTBF: 228 a.
reference code:
according to IEC 81346-2:2019: CFA.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
total 0.93 kg.
during manufacturing 0.88 kg.
during operation 0.00041 kg.
after end of life 0.05 kg.
