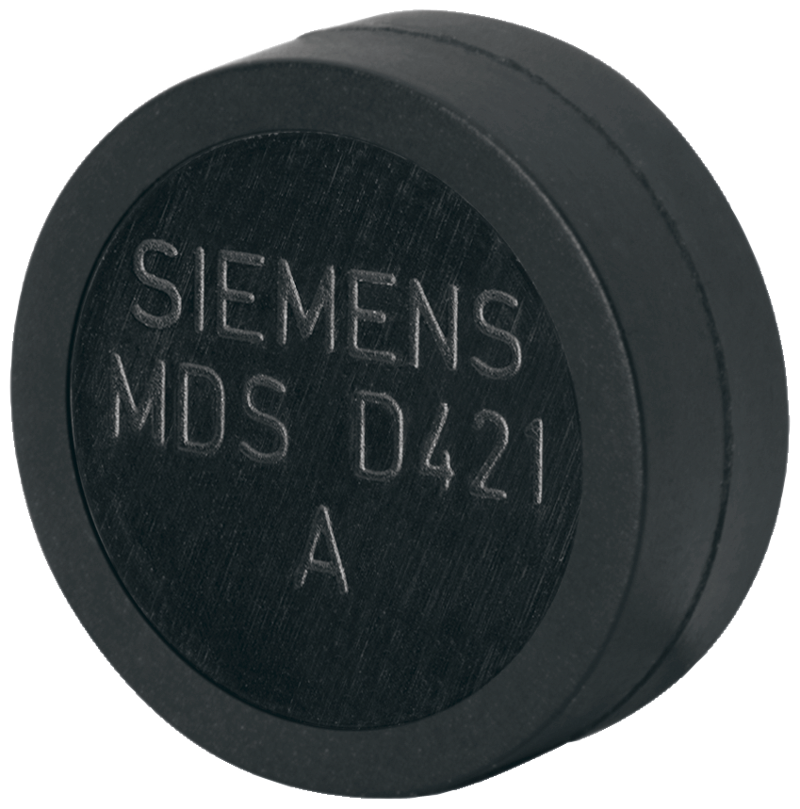

Transponder MDS D421 tool pill, RF200/RF300 ISO, ISO 15693, 2000 byte FRAM
SKU: 6GT2600-4AE00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Transponder MDS D421 for RF200/RF300 ISO tool pill in metal, ISO 15693, chip type Fujitsu MB89R118, 2000-byte FRAM user memory 10x4.5 mm (D x H); order quantity of 10 units.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for operation: RF200, RF300.
Operating frequency / rated value: 13.56 MHz
Range / maximum: 8 mm; range is reader dependent: observe.
Protocol / with radio transmission: ISO 15693.
Transfer rate / with radio transmission / maximum: 26.5 kbit/s.
Type of memory: FRAM.
Storage capacity / of the user memory: 2000 byte.
Type of memory organization: UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes.
Property of memory: Block-by-block write protection of the user memory.
Material: Epoxy resin.
Colour: black.
Ambient temperature:
During read/write access: -25 ... +85 °C.
Outside the read/write area: -40 ... +100 °C.
During storage: -40 ... +100 °C.
Protection class IP: IP67/IPx9K.
Height: 4.5 mm.
Diameter: 10 mm.
Fastening method: gluing.
