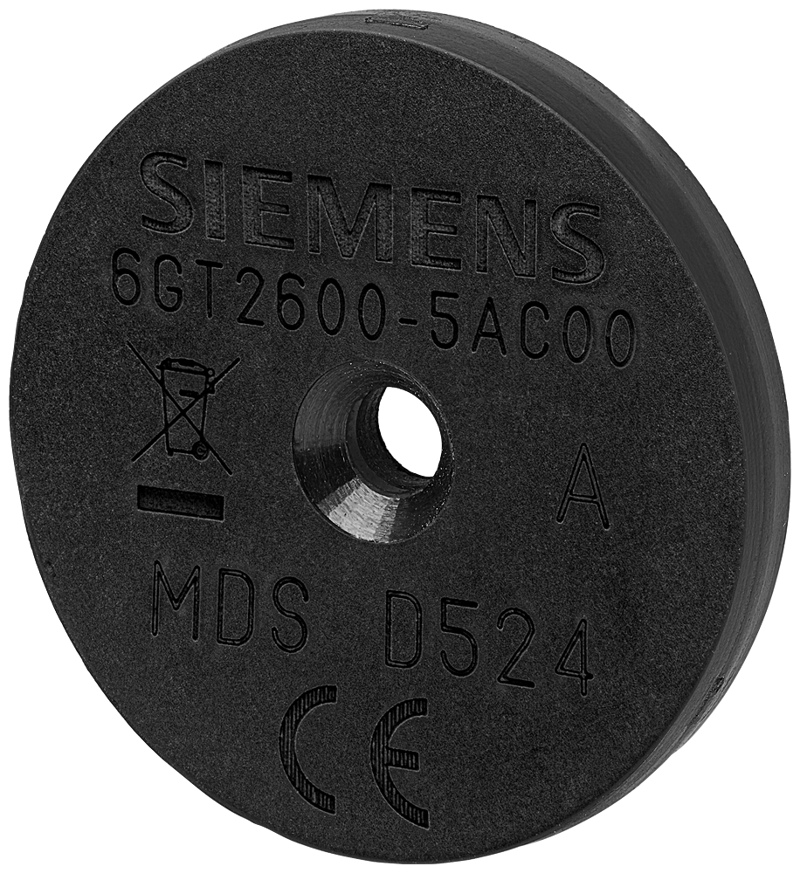

      Transponder MDS D524 button, RF200/RF300 Gen2, ISO 15693, 8192 byte FRAM

      SKU: 6GT2600-5AC00

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The product type identification is MDS D524 transponder. Transponder MDS D524 for RF200/RF300 Gen2, button ISO 15693, Fujitsu MB89R112, 8192-byte FRAM user memory, 27x 4 mm (DxH), with a minimum order quantity of 20 units. Suitability for operation: RF200, RF300. Radio frequencies: operating frequency / rated value: 13.56 MHz. range / maximum: 300 mm; range is reader dependent. protocol / with radio transmission: ISO 15693. transfer rate / with radio transmission / maximum: 26.5 kbit/s. product feature / multitag-capable: Yes.
      6GT2600-5AC00
      Alternative image 1
      electrical data: product component / backup battery: No. memory: type of memory: FRAM. storage capacity / of the user memory: 8192 byte. type of memory organization: UID (fixed code) 8 bytes, user memory 8192 bytes, configuration memory 40 bytes. number of read cycles / at ambient temperature < 40 °C / maximum: 1E+12. number of write cycles / at ambient temperature < 40 °C / maximum: 1E+12. data retention time / at ambient temperature < 40 °C / not less than: 10 a. property of memory: Block-by-block write protection of the user memory. type of transponder chip used: Fujitsu MB89R112. mechanical data: material: Epoxy resin. colour: black. tightening torque / of the screw for securing the equipment / maximum: 1 N·m. mounting distance / relating to metal surfaces / recommended / minimum: 15 mm. ambient conditions: ambient temperature: during read/write access: -25 ... +85 °C. outside the read/write area: -40 ... +100 °C. during storage: -40 ... +100 °C. protection class IP: IP67/IPx9K. shock resistance: According to DIN EN 60721-3-7 Class 7 M3. shock acceleration: 1000 m/s². vibrational acceleration: 200 m/s². design, dimensions and weights: height: 4 mm. diameter: 27 mm. net weight: 5 g. fastening method: M3 screw, gluing. product features, product functions, product components / general: product feature: silicon-free: Yes. printable: No. standards, specifications, approvals: certificate of suitability: IECEx: No. MTBF: 171 a. reference code: according to IEC 81346-2:2019: CFA. accessories: accessories: Mounting support and spacer.
