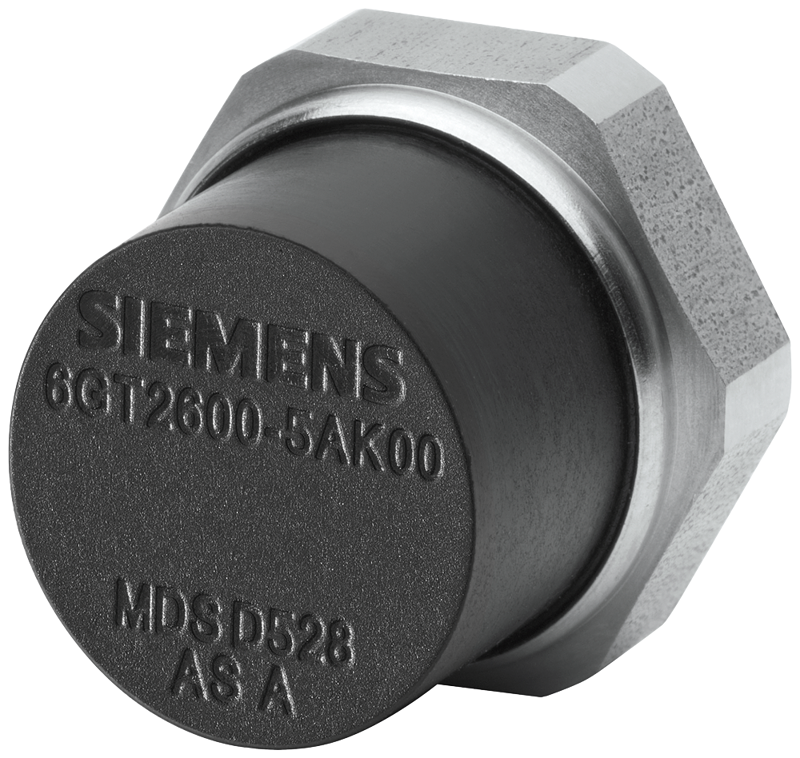

Transponder MDS D528 can be screwed M8, RF200/RF300 Gen2, ISO 15693
SKU: 6GT2600-5AK00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type identification is MDS D528 transponder.
Transponder MDS D528 for RF200/RF300 Gen2, screw transponder M8 long, ISO 15693, chip type FUJITSU MB89R112, 8192-byte FRAM user memory 24x 20 mm (DxH); SW22; order quantity of 5 units.
Suitability for operation: RF200, RF300.
Radio frequencies:
operating frequency / rated value: 13.56 MHz.
range / maximum: 80 mm; range is reader dependent.
protocol / with radio transmission: ISO 15693.
transfer rate / with radio transmission / maximum: 26.5 kbit/s.
product feature / multitag-capable: Yes.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
product component / backup battery: No.
memory:
type of memory: FRAM.
storage capacity / of the user memory: 8192 byte.
type of memory organization: UID (fixed code) 8 bytes, user memory 8192 bytes, configuration memory 40 bytes.
number of read cycles / at ambient temperature < 40 °C / maximum: 1E+12.
number of write cycles / at ambient temperature < 40 °C / maximum: 1E+12.
data retention time / at ambient temperature < 40 °C / not less than: 10 a.
property of memory: Block-by-block write protection of the user memory.
type of transponder chip used: Fujitsu MB89R112.
mechanical data:
material: PA6.6 GF / stainless steel.
colour: black / silver.
tightening torque / of the screw for securing the equipment / maximum: 6 N·m.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
ambient conditions:
ambient temperature:
during read/write access: -25 ... +85 °C.
outside the read/write area: -40 ... +125 °C.
during storage: -40 ... +125 °C.
protection class IP: IP68/IPx9K.
shock resistance: According to DIN EN 60721-3-7 Class 7 M3.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
height: 20 mm.
diameter: 18 mm.
net weight: 35 g.
fastening method: screwing (M8).
product features, product functions, product components / general:
product feature:
silicon-free: Yes.
printable: No.
standards, specifications, approvals:
certificate of suitability:
IECEx: No.
reference code:
according to IEC 81346-2:2019: CFA.
