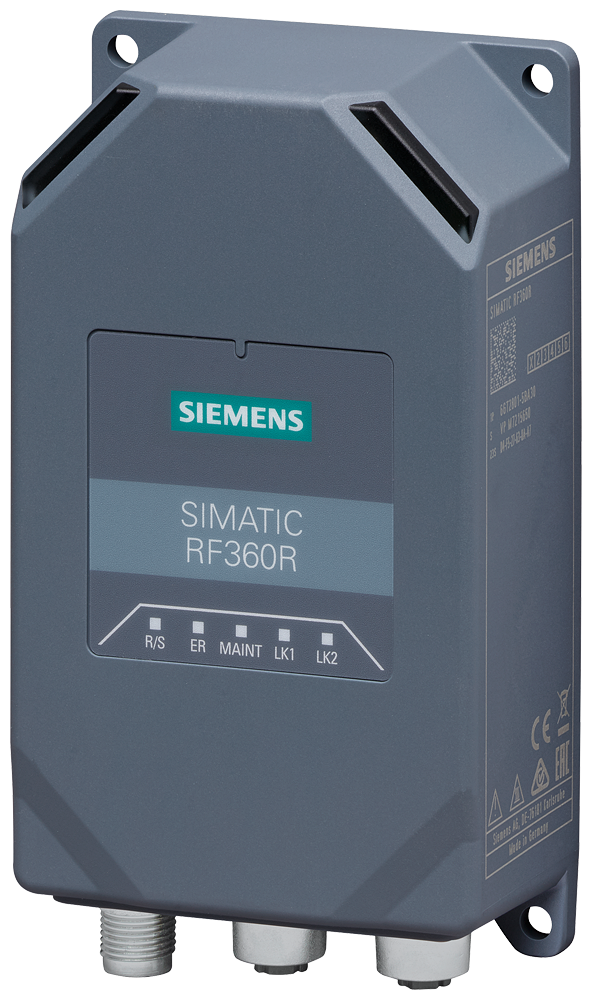

SIMATIC RF300; Compact Reader RF360R; for Profinet, Ethernet
SKU: 6GT2801-5BA30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC RF300; RF360R Compact Reader; Profinet, Ethernet access.
suitability for operation: RF300 and ISO 15693 transponder, for direct connection to Ethernet, PROFINET, OPC UA server integrated.
radio frequencies:
operating frequency / rated value: 13.56 MHz.
range / maximum: 150 mm; Range is dependent on transponder type.
protocol / with radio transmission: RF300-specific, ISO 15693, ISO 18000-3.
transfer rate / with radio transmission / maximum: 106 kbit/s.
product feature / multitag-capable: No.
electrical data:
transmission time / for user data:
for write access / per byte / typical: 0.13 ms.
for read access / per byte / typical: 0.13 ms.
Buy currently uses Select Automation shop pricing and checkout.
interfaces:
standard for interfaces / for communication: Ethernet, PROFINET, XML, OPC/UA.
type of electrical connection: #NO_DATA.
for external antenna(s): #NO_DATA.
for supply voltage: M12, 4-pin, socket, L-code.
for communications interface: 2 x M12, 4-pin, D-coded.
mechanical data:
material: PA 12.
colour: titanium grey.
tightening torque / of the screw for securing the equipment / maximum: 1.5 N·m.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 24 V.
: 20.4 ... 28.8 V.
consumed current / at DC:
at 24 V / typical: 0.15 A.
ambient conditions:
ambient temperature:
during operation: -25 ... +55 °C.
during storage: -40... +70 °C.
during transport: -40 ... +70 °C.
protection class IP: IP67.
shock resistance: EN 60721-3-7 Class 7 M2.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
width: 141 mm.
height: 42 mm.
Depth: 80 mm.
net weight: 0.41 kg.
fastening method: 4 x M5 screws.
product features, product functions, product components / general:
display version: 5-colour LED.
product feature / silicon-free: Yes.
product function / of the PROFINET IO device / is supported / H Sync forwarding: No.
protocol / is supported.
LLDP: Yes.
PROFINET IO protocol: Yes.
TCP/IP: Yes.
SNMP v1: Yes.
SNMP v2: No.
SNMP v3: No.
DCP: Yes.
EtherNet/IP protocol: No.
OPC UA: Yes.
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus, ATEX: EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN60079-31:2014, IEC Ex: IEC 60079-0:2011, IEC 60079-31:2013, EN 60079-7:2015, UL HAZ.LOC: UL 60079-0, CSA C22.2 NO.60079-0, UL 60079-7, CSA C22.2 NO. 60079-7, UL 60079-31, CSA C22.2 NO. 60079-31.
certificate of suitability:
IECEx: No.
MTBF: 65 a.
reference code:
according to IEC 81346-2:2019: BYB.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
total: 124.25 kg.
during manufacturing: 11.24 kg.
during operation: 112.71 kg.
after end of life: 0.3 kg.
