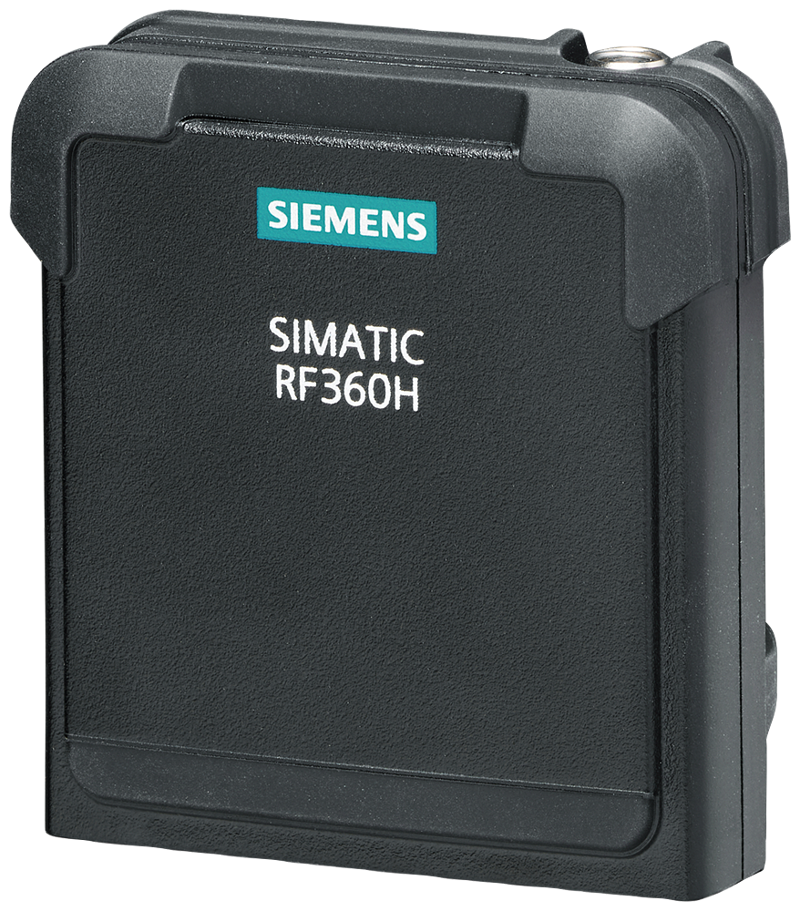

HF module RF360H for external antenna
SKU: 6GT2803-1FA10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type: HF module RF360H for external antenna.
SIMATIC RF360H HF RFID reader module requires the base device RF160B (6GT2003-0FA00) and is compatible with RF200/RF300 and external antennas.
Suitability for operation: RF300, RF200/ISO 15693 and MOBY E transponder, especially for small transponders; only to be operated with RF160B.
range: 100 mm.
range / note: dependent of the type of external antenna
Radio frequencies:
operating frequency / rated value: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
protocol / with radio transmission: RF300 specific, ISO 15693, ISO 18000-3, ISO 14443.
transfer rate / with radio transmission / maximum: 106 kbit/s.
product feature / multitag-capable: No.
supply voltage, current consumption, power loss:
type of current supply: via RF160B basic device.
type of battery: -.
ambient conditions:
ambient temperature:
during operation: -20 ... +50 °C.
during storage: -20 ... +60 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
protection class IP: IP65.
design, dimensions and weights:
width: 85 mm.
height: 89 mm.
depth: 41 mm.
net weight: 0.25 kg.
product features, product functions, product components / general:
design of the interface: system internal to RF 160B.
standards, specifications, approvals:
certificate of suitability: EMC: EN 55032, EN 301 489, EN 300 330, safety: 62368-1, FCC Part 15.225.
reference code:
according to IEC 81346-2:2019: BYB.
accessories:
accessories: SIMATIC RF RF160B basic device.
