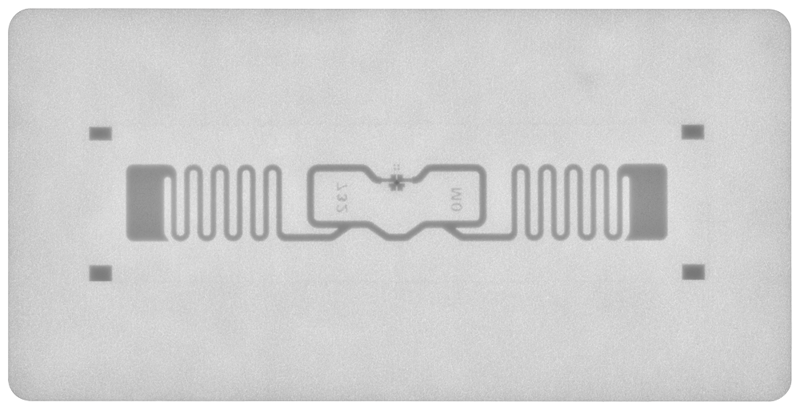

SIMATIC RF630L Smart Label PET white, 4"x2" ISO 18000-6C
SKU: 6GT2810-2AB04-0AX1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation Transponder: RF630L.
SIMATIC RF630L SmartLabel PET white, 4"x2", ISO 18000-6C, EPC Class 1 Gen 2, frequency 860 to 960 MHz, chip type NXP Ucode 7-xm, 448-bit (56 bytes).
EPC ID: 2048 bits (256 bytes) user memory very adhesive on foamed materials printable thermotransfer temperature from -25°C to +80°C roll 76.2 mm (3) core diameter 1,000 units/roll 4 rolls per carton.
Minimum order quantity: 4.000 pcs.
suitability for operation: RF600.
radio frequencies:
operating frequency: 860-930 MHz.
range / maximum: 5 m; observe system manual RF600: overrange is possible, range is reader dependent.
protocol / with radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-63.
transfer rate / with radio transmission / maximum: 320 kbit/s.
product feature / multitag-capable: Yes.
polarization: Linear.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
product component / backup battery: No.
memory:
type of memory: EEPROM.
storage capacity / of the user memory: 256 byte.
type of memory organization: EPC 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID 96 bit (12 byte).
number of read cycles / at ambient temperature < 40 °C / maximum: 1E+14.
number of write cycles / at ambient temperature < 40 °C / maximum: 100000.
data retention time / at ambient temperature < 40 °C / not less than: 10 a.
property of memory: lock, unlock, kill, write protection, password protection.
type of transponder chip used: NXP Ucode 7-xm 2k.
mechanical data:
material: Paper.
colour: white.
mounting distance / relating to metal surfaces / recommended / minimum: 3 mm.
ambient conditions:
ambient temperature:
during read/write access: -25 ... +85 °C.
outside the read/write area: -40 ... +130 °C.
during storage: 5 ... 25 °C.
ambient condition / for operation: Maximum storage life 2 years.
protection class IP: IP67, when adhered.
resistance to mechanical stress: Torsion and bending stress conditionally permissible.
design, dimensions and weights:
width: 101.6 mm.
height: 0.2 mm.
depth: 50.8 mm.
net weight: 3 g.
fastening method: one-side adhesible.
pack type: Rolls with 1000 labels for applicator with 3'' core.
product features, product functions, product components / general:
product feature:
tamper-proof: No.
printable: Yes.
printing process: Thermal transfer process.
standards, specifications, approvals:
certificate of suitability:
IECEx: No.
reference code:
according to IEC 81346-2:2019: CFA.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total: 0.0088 kg.
during manufacturing: 0.0086 kg.
during operation: 0.00017 kg.
after end of life: 5E-5 kg.
