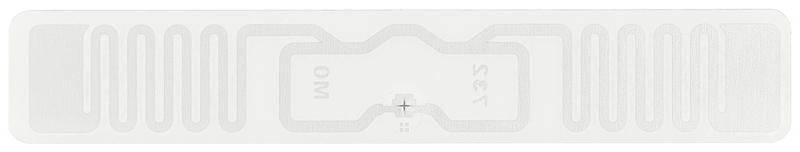

Smart Label RF630L, PET, 73x12.5 mm, strongly adhesive to plastics
SKU: 6GT2810-2AC84
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC RF630L (Special Version).
Smart Label PET; 73x 12.5 mm; tightly adhered to plastic ISO 18000-6C, EPC Class 1 Gen 2 frequency 860 to 960 MHz, Chip type NXP U code 7XM, memory 448-bit EPC, 2048-bit user, core diameter 76 mm.
2000 units on a single roll, 5 rolls per carton.
The minimum order quantity is 10,000 units.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for operation: RF600.
Operating frequency: 860 ... 930 MHz
Range / maximum: 5 m.
Transfer rate / with radio transmission / maximum: 320 kbit/s.
Type of memory: EEPROM.
Storage capacity / of the user memory: 256 bytes.
Type of memory organization: EPC memory 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte).
Property of memory: lock, unlock, kill, write protection, password protection.
Material: PET.
Colour: white.
Mounting distance / relating to metal surfaces / recommended / minimum: 3 mm.
Ambient temperature:
During read/write access: -20 ... +70 °C.
Outside the read/write area: -40 ... +85 °C.
During storage: 5 ... 25 °C.
Ambient condition / for operation: Maximum storage life 2 years at 45% to 55% humidity, operating temperature permanent up to 85 °C, transient -40 °C to 120 °C for 90 minutes.
Protection class IP: IP67, when adhered.
Width: 12.5 mm.
Height: 0.3 mm.
Depth: 73 mm.
Fastening method: one-side adhesively.
