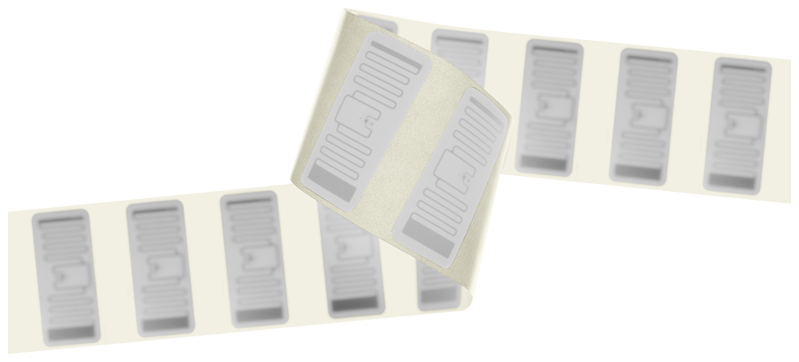

Smart Label RF630L, PET, 75x20 mm, strongly adhesive to plastics
SKU: 6GT2810-2AE81-0AX3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation Transponder: RF630L (special variant).
SIMATIC RF630L (Special variant) SmartLabel PET; 75x20 mm; highly sticky on plastic ISO 18000-6C, EPC Class 1 Gen 2 Frequency 860 to 960 MHz, chip type NXP Ucode7XM+ EPC 448 Bit, user 2048-bit; core diameter 76 mm; 3500 units per roll; minimum order quantity 7000 units.
suitability for operation: RF600.
radio frequencies:
operating frequency: 860-930 MHz.
range / maximum: 5 m; observe system manual RF600: overrange is possible, range is reader dependent.
protocol / with radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-63.
transfer rate / with radio transmission / maximum: 320 kbit/s.
product feature / multitag-capable: Yes.
polarization: Linear.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
product component / backup battery: No.
memory:
type of memory: EEPROM.
storage capacity / of the user memory: 256 byte.
type of memory organization: EPC memory 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte).
number of read cycles / at ambient temperature < 40 °C / maximum: 1E+14.
number of write cycles / at ambient temperature < 40 °C / maximum: 100000.
data retention time / at ambient temperature < 40 °C / not less than: 20 a.
property of memory: lock, unlock, kill, write protection, password protection.
type of transponder chip used: NXP Ucode 7-xm 2k.
mechanical data:
material: PET.
colour: white.
mounting distance / relating to metal surfaces / recommended / minimum: 3 mm.
ambient conditions:
ambient temperature:
during read/write access: -25 ... +85 °C.
outside the read/write area: -40 ... +120 °C.
during storage: 5 ... 25 °C.
ambient condition / for operation: Maximum storage life 2 years at 45% to 55% humidity, operating temperature permanent up to 85 °C, transient -40 °C to 120 °C for 90 minutes.
protection class IP: IP67, when adhered.
resistance to mechanical stress: Torsion and bending stress conditionally permissible.
design, dimensions and weights:
width: 20 mm.
height: 0.3 mm.
depth: 75 mm.
net weight: 0.2 g.
fastening method: one-side adhesible.
pack type: Rolls with 3500 labels for applicator with 3'' core.
product features, product functions, product components / general:
product feature:
tamper-proof: No.
printable: Yes.
printing process: Thermal transfer process.
standards, specifications, approvals:
certificate of suitability:
IECEx: No.
reference code:
according to IEC 81346-2:2019: CFA.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total: 0.0088 kg.
during manufacturing: 0.0086 kg.
during operation: 0.00017 kg.
after end of life: 5E-5 kg.
