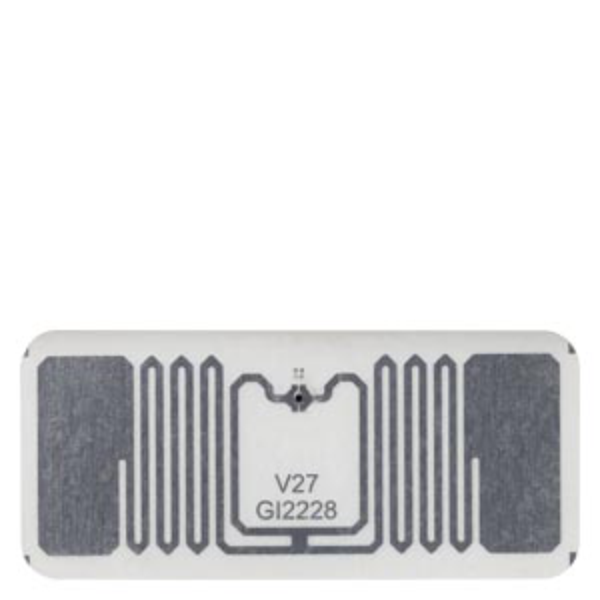

SIMATIC RF630L Smart Label PET white, ISO 18000-6C, 45x20 mm
SKU: 6GT2810-2AE82-2AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Transponder RF630L.
SIMATIC RF630L SmartLabel PET white, 45x20 mm ISO 18000-6C, EPC Class 1 Gen 2, frequency 860 to 960 MHz, chip type NXP Ucode 8, 128-bit (16 bytes).
EPC memory has no user memory.
Highly adhesive on plastic printable thermotransfer temperature from -25 °C to +160 °C roll 76.2 mm (3") core diameter 2,500 units per roll 2 rolls per carton 5000 units MOQ.
Suitability for operation: RF600.
Radio frequencies:
Operating frequency: 860 ... 930 MHz.
Range / maximum: 5 m; observe system manual RF600: overrange is possible, range is reader dependent: observe.
Protocol / with radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-63.
Transfer rate / with radio transmission / maximum: 320 kbit/s.
Product feature / multi-tag-capable: Yes.
Polarization: Linear.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Product component / backup battery: No.
Memory:
Type of memory: EEPROM.
Storage capacity / of the user memory: 16 bytes.
Type of memory organization: EPC 128 bit (16 byte), no user memory.
Number of read cycles / at ambient temperature < 40 °C / maximum: 1E+14.
Number of write cycles / at ambient temperature < 40 °C / maximum: 100000.
Data retention time / at ambient temperature < 40 °C / not less than: 10 a.
Property of memory: lock, unlock, kill, write protection, password protection.
Type of transponder chip used: NXP Ucode 8.
Mechanical data:
Material: PET.
Colour: white.
Mounting distance / relating to metal surfaces / recommended / minimum: 3 mm.
Ambient conditions:
Ambient temperature.
During read/write access: -25 ... +85 °C.
Outside the read/write area: -25 ... +160 °C.
During storage: 5 ... 25 °C.
Ambient condition / for operation: Maximum storage life 2 years.
Protection class IP: IP67, when adhered.
Resistance to mechanical stress: Torsion and bending stress conditionally permissible.
Design, dimensions and weights:
Width: 45 mm.
Height: 0.2 mm.
Depth: 20 mm.
Net weight: 3 g.
Fastening method: one-side addressable.
Pack type: Rolls with 2500 labels for applicator with 3'' core.
