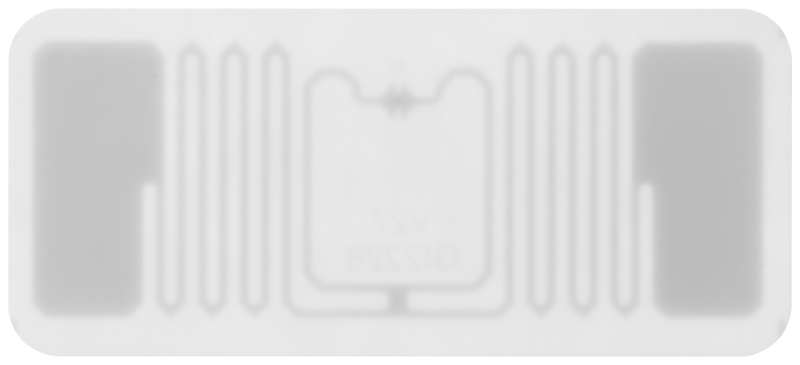

SIMATIC RF630L Smart Label PET white, 45x20 mm ISO 18000-6C
SKU: 6GT2810-2AE82-2AX1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation Transponder: RF630L.
SIMATIC RF630L SmartLabel PET white, 45x20 mm, ISO 18000-6C, EPC Class 1 Gen 2 frequency 860 to 960 MHz chip type NXP Ucode 8 128-bit (16 bytes).
EPC has no user memory.
strong adhesive on plastic printable thermotransfer temperature from -25 °C to +160 °C.
roll 152.4 mm (6) core diameter 5,000 units/roll, two rolls per carton.
Minimum order quantity: 10,000 pcs.
suitability for operation: RF600.
radio frequencies:
operating frequency: 860-930 MHz.
range / maximum: 5 m; observe system manual RF600: overrange is possible, range is reader dependent.
protocol / with radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-63.
transfer rate / with radio transmission / maximum: 320 kbit/s.
product feature / multitag-capable: Yes.
polarization: Linear.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
product component / backup battery: No.
memory:
type of memory: EEPROM.
storage capacity / of the user memory: 16 byte.
type of memory organization: EPC 128 bit (16 byte), no user memory.
number of read cycles / at ambient temperature < 40 °C / maximum: 1E+14.
number of write cycles / at ambient temperature < 40 °C / maximum: 100000.
data retention time / at ambient temperature < 40 °C / not less than: 10 a.
property of memory: lock, unlock, kill, write protection, password protection.
type of transponder chip used: NXP Ucode 8.
mechanical data:
material: PET.
colour: white.
mounting distance / relating to metal surfaces / recommended / minimum: 3 mm.
ambient conditions:
ambient temperature:
during read/write access: -25 ... +85 °C.
outside the read/write area: -40 ... +160 °C.
during storage: 5 ... 25 °C.
ambient condition / for operation: Maximum storage life 2 years.
protection class IP: IP67, when adhered.
resistance to mechanical stress: Torsion and bending stress conditionally permissible.
design, dimensions and weights:
width: 45 mm.
height: 0.2 mm.
depth: 20 mm.
net weight: 3 g.
fastening method: one-side adhesible.
pack type: Rolls with 5000 labels for applicator with 3'' core.
product features, product functions, product components / general:
product feature:
tamper-proof: No.
printable: Yes.
printing process: Thermal transfer process.
standards, specifications, approvals:
certificate of suitability:
IECEx: No.
reference code:
according to IEC 81346-2:2019: CFA.
