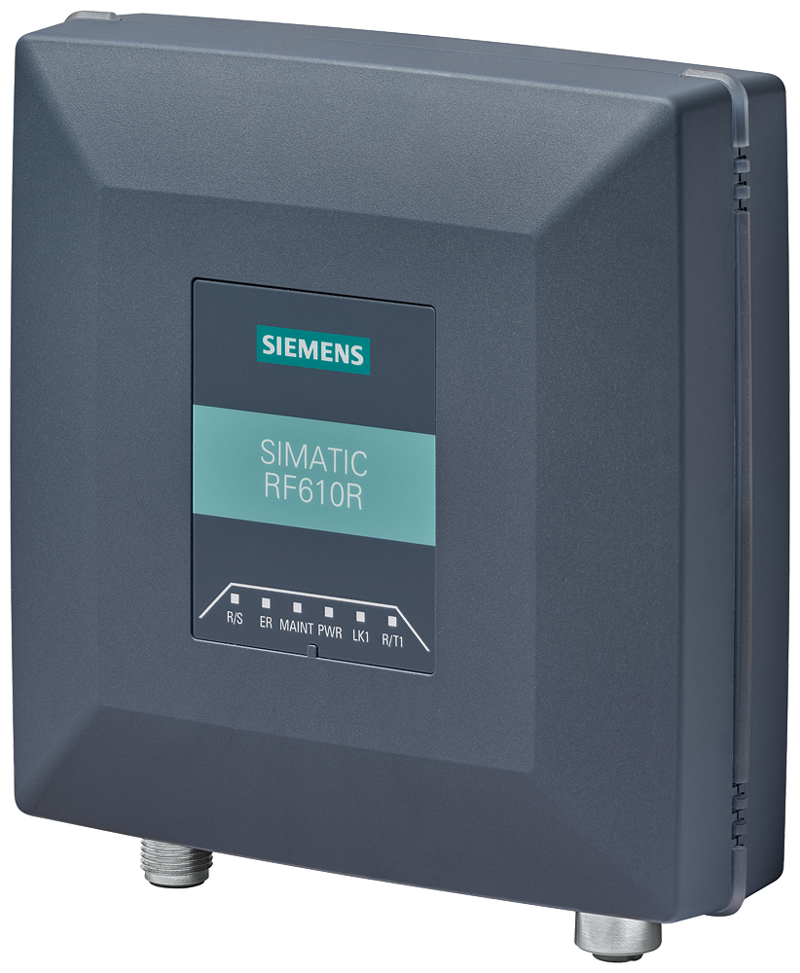

SIMATIC RF600 Reader RF610R ETSI; Interfaces: 1 Ethernet / PROFINET M12
SKU: 6GT2811-6BC10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
product designation: Reader RF610R ETSI.
SIMATIC RF600 Reader, RF610R ETSI.
Interfaces: 1 Ethernet / PROFINET M12.
One integrated antenna.
24 V DC.
IP67.
Without accessories, temperatures range from -25°C to +55°C.
suitability for operation: RF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated.
radio frequencies:
operating frequency: 865-868 MHz.
effective radiated power:
minimum: 10 mW.
maximum: 200 mW.
range / maximum: 1.6 m; Extended ranges possible, see RF600 System Manual, Range table.
protocol / with radio transmission: EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63.
transfer rate / with radio transmission / maximum: 400 kbit/s.
product feature / multitag-capable: Yes.
polarization: circular.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
transmission time / for user data:
for write access / per byte / typical: 2 ms.
for read access / per byte / typical: 0.15 ms.
interfaces:
standard for interfaces / for communication: Ethernet, PROFINET, OPC UA, EtherNet/IP, RS422.
type of electrical connection:
for supply voltage: M12, 8-pin, connector.
for communications interface: M12, 4-pin, d-coded.
mechanical data:
material: Pocan.
colour: silver, TI-Grey.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 24 V.
: 20 ... 30 V.
consumed current / at DC:
at 24 V / typical: 0.2 A.
at 24 V / maximum: 0.22 A.
