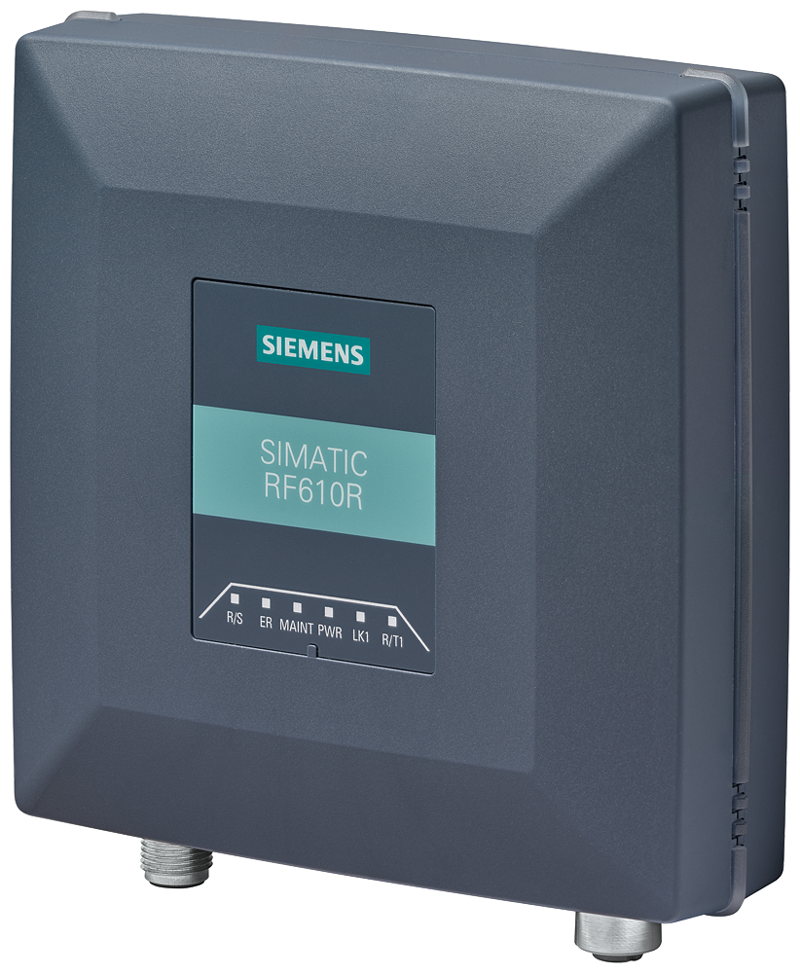

SIMATIC RF600 Reader RF610R FCC; interfaces: 1 Ethernet / PROFINET M12

Specifications: Suitability for operation: RF600 Transponder, for direct connection to Ethernet, PROFINET, Ethernet/IP or PROFIBUS via communication module, OPC UA server integrated. Operating frequency: 902 ... 928 MHz Equivalent isotopically radiated power: Minimum: 10 m W. Maximum: 400 m W. Range / maximum: 1.6 m; Extended ranges possible. Transfer rate / with radio transmission / maximum: 400 kbit/s. Interfaces: Standard for interfaces / for communication: Ethernet, PROFINET, OPC UA, Ethernet/IP, RS422. Type of electrical connection: For supply voltage: M12, 8-pin, connector. For communications interface: M12, 4-pin, d-coded. Material: Pocan. Colour: silver, TI-Grey. Supply voltage / at DC, rated value: 24 V. Consumed current / at DC: At 24 V / typical: 0.2 A. At 24 V / maximum: 0.22 A. Ambient temperature: During operation: -25 ... +55 °C. During storage: -40 ... +85 °C. During transport: -40 ... +85 °C. Ambient condition / for operation: With operating temperature below -20 °C: Warming-up time at least 10 minutes. Protection class IP: IP67. Width: 133 mm. Height: 133 mm. Depth: 45 mm. Fastening method: Vesa 100 with 4 x M4 screws. Wire length: Of antenna cable / minimum: 1 m. Of antenna cable / maximum: 40 m.
