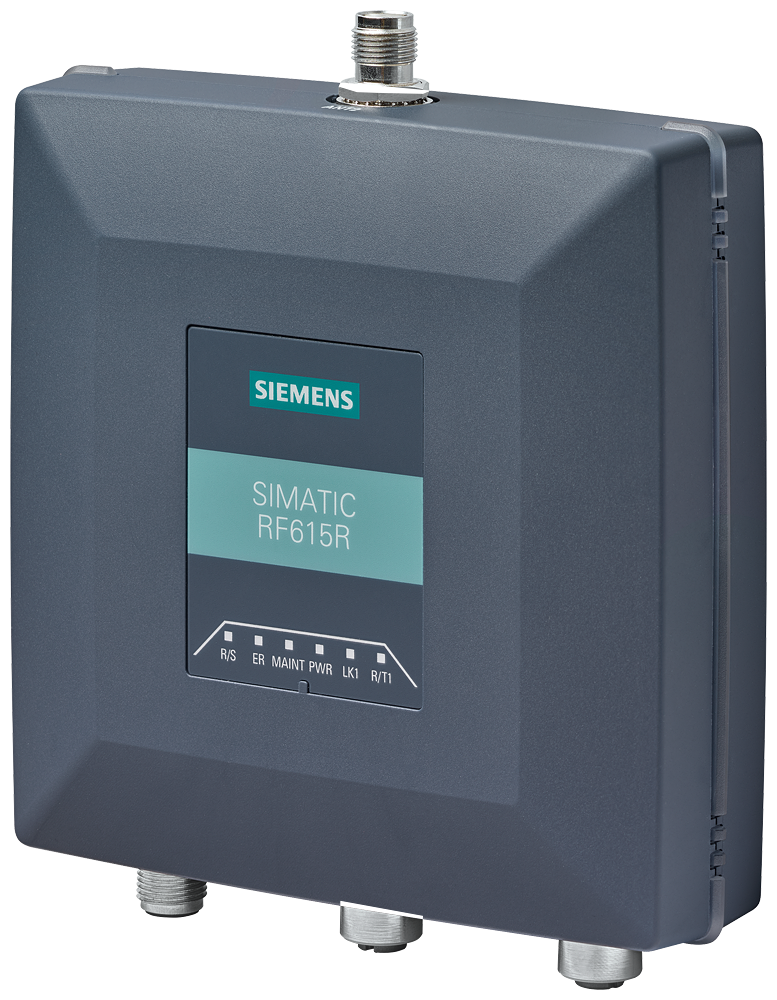

SIMATIC RF600 Reader RF615R FCC; interfaces: 1 Ethernet / PROFINET M12
SKU: 6GT2811-6CC10-1AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Reader RF615R FCC.
SIMATIC RF600 Reader RF615R FCC has 1 Ethernet / PROFINET M12 interface, 1 inbuilt antenna, 1 external antenna port, 1 digital input, 1 digital output, 24 V DC, IP67, and a temperature range of -25 to +55 °C without accessories.
suitability for operation: RF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated.
radio frequencies:
operating frequency: 902 ... 928 MHz.
transmit power: 3 ... 400 mW.
effective radiated power:
for each external antenna / maximum: 1800 mW.
minimum: 10 mW.
maximum: 400 mW.
range / maximum: 4 m; With the internal antenna 1.6 m, extended ranges possible.
protocol / with radio transmission: EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63.
transfer rate / with radio transmission / maximum: 400 kbit/s.
product feature / multitag-capable: Yes.
polarization: circular.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
transmission time / for user data:
for write access / per byte / typical: 2 ms.
for read access / per byte / typical: 0.15 ms.
interfaces:
number of external antennas: 1.
standard for interfaces / for communication: Ethernet, PROFINET, OPC UA, EtherNet/IP, RS422.
type of electrical connection:
for external antenna(s): RP-TNC.
for supply voltage: M12, 8-pin, connector.
for communications interface: M12, 4-pin, d-coded.
at the digital inputs/outputs: M12, 5-pin, female connector.
number of digital inputs: 1.
number of digital outputs: 1.
mechanical data:
material: Pocan.
colour: silver, TI-Grey.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 24 V.
: 20 ... 30 V.
consumed current / at DC:
at 24 V / typical: 0.2 A.
at 24 V / maximum: 0.22 A.
ambient conditions:
ambient temperature:
during operation: -25 ... +55 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
ambient condition / for operation: With operating temperature below -20 °C: Warming-up time at least 10 minutes.
protection class IP: IP67.
shock resistance: EN 60068-2-27, EN 60068-2-6.
shock acceleration: 250 m/s².
vibrational acceleration: 30 m/s².
resistance to mechanical stress: The maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws.
design, dimensions and weights:
width: 133 mm.
height: 133 mm.
depth: 45 mm.
net weight: 0.37 kg.
fastening method: Vesa 100 with 4 x M4 screws.
wire length:
of antenna cable / minimum: 1 m.
of antenna cable / maximum: 40 m.
product features, product functions, product components / general:
display version: LED bars with 6 LED and 1 circulating LED.
protocol / is supported / Media Redundancy Protocol (MRP): Yes.
product function / of the PROFINET IO device / is supported / H - Sync forwarding: No.
protocol / is supported:
LLDP: Yes.
PROFINET IO protocol: Yes.
TCP/IP: Yes.
SNMP v1: Yes.
SNMP v2: No.
SNMP v3: No.
DCP: Yes.
EtherNet/IP protocol: Yes.
OPC UA: Yes.
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: wireless according to RED directive, CE, IEC 62368, OPC UA: embedded UA Server Profile.
certificate of suitability:
IECEx: No.
MTBF: 29 a.
reference code:
according to IEC 81346-2:2019: BYB.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total: 359.52 kg.
during manufacturing: 72.88 kg.
during operation: 285.81 kg.
after end of life: 0.83 kg.
accessories:
accessories: One external antenna.
