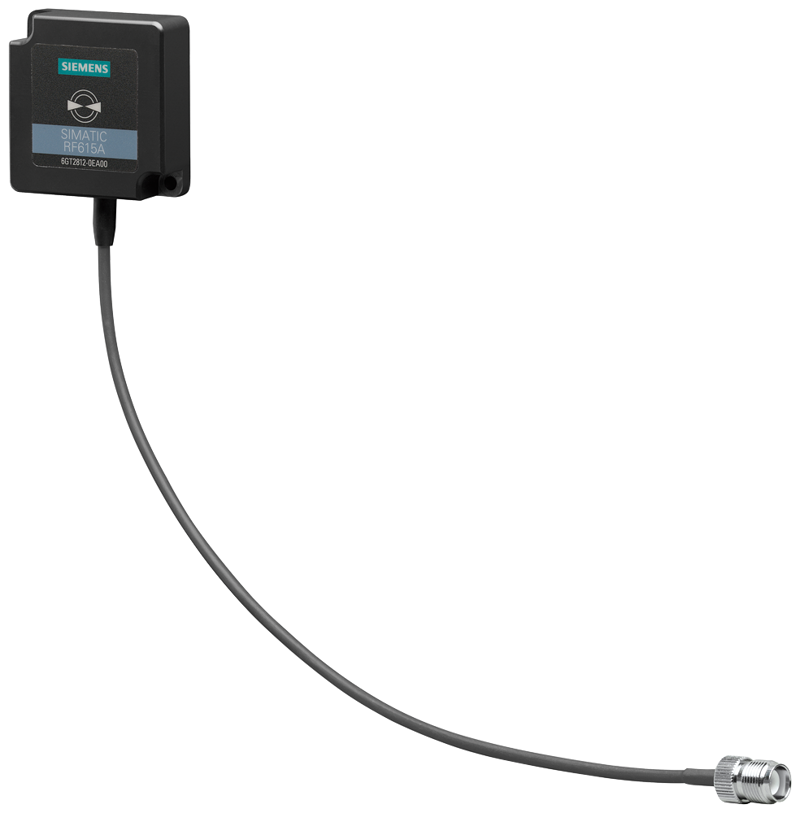

Antenna RF615A ETSI linear, RF600, 865-868 MHz EU, IP67, 0.3 m cable
SKU: 6GT2812-0EA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RF615A antenna is an ETSI product.
SIMATIC RF600 antenna RF615A; ETSI frequency 865-868 EU linear IP67, -20 to +70°C, with 30 cm connection cable 52 x 52 x 16 mm (LxWxH).
suitability for operation: SIMATIC RF600.
radio frequencies:
transmission frequency: 865 ... 868 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
antenna gain compared to spherical radiator:
with linear radiation: -5 dB.
impedance: 50 Ω.
polarization: Linear.
standing wave ratio (VSWR) / maximum: 2.
radiating angle of the antenna:
horizontal: 100°.
vertical: 75°.
type of electrical connection / of the antenna: RP-TNC.
design of plug-in connection: male.
mechanical data:
material: PA 6.
colour: black.
tightening torque / of the screw for securing the equipment / maximum: 1.5 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -20 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP67.
shock resistance: according to EN 60068-2-27.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
width: 52 mm.
height: 52 mm.
depth: 16 mm.
net weight: 100 g.
fastening method: 2 x M4 screws.
wire length / of antenna cable: 0.3 m.
product features, product functions, product components / general:
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: CE (ETSI EN 302208).
certificate of suitability:
IECEx: No.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Antenna cables 1 to 40 m.
