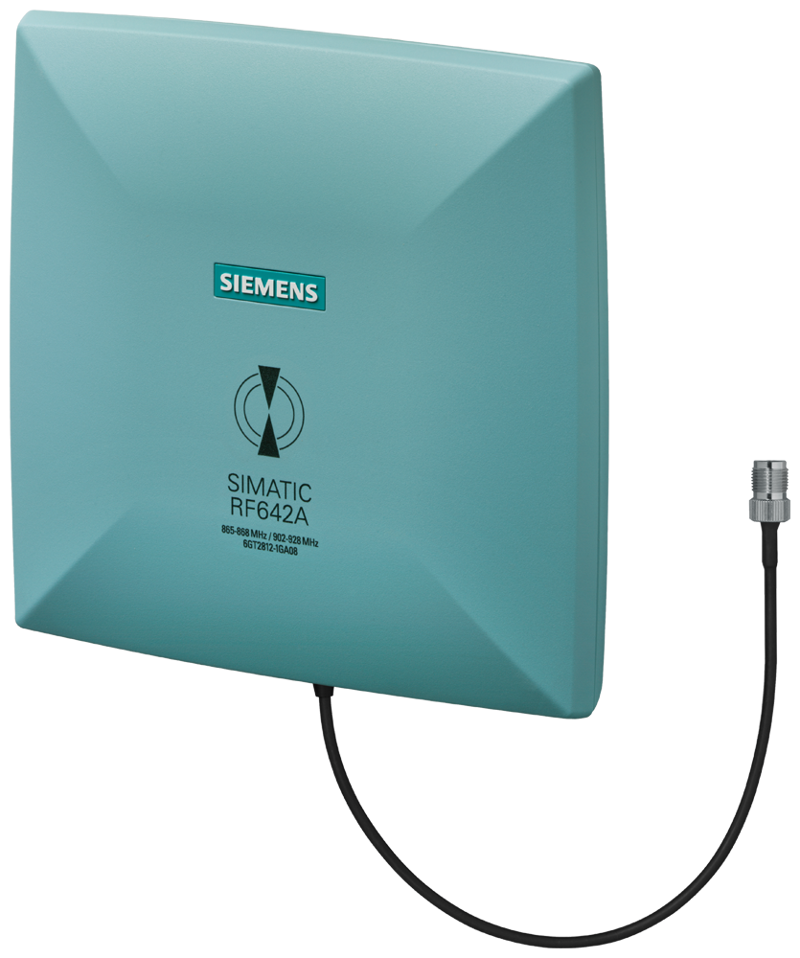

Antenna RF642A linear, RF600, 865-928 MHz, IP65
SKU: 6GT2812-1GA08
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
product designation: Antenna RF642A.
SIMATIC RF600 antenna RF642A has a linear frequency range of 865-928 MHz and dimensions of 185x185x45 mm (LxWxH). IP65, -25 to +75 degrees Celsius.
suitability for operation: SIMATIC RF600.
radio frequencies:
transmission frequency: 865-928 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
antenna gain compared to spherical radiator:
with linear radiation: 6 dB.
impedance: 50 Ω.
polarization: Linear.
standing wave ratio (VSWR) / maximum: 1.5.
radiating angle of the antenna:
horizontal: 75°.
vertical: 70°.
type of electrical connection / of the antenna: RP-TNC.
design of plug-in connection: male.
mechanical data:
material: PA 12.
colour: Pastel turquoise.
tightening torque / of the screw for securing the equipment / maximum: 2 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +75 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP65.
shock resistance: according to EN 60068-2-27.
shock acceleration: 300 m/s².
vibrational acceleration: 100 m/s².
design, dimensions and weights:
width: 185 mm.
height: 185 mm.
depth: 45 mm.
net weight: 600 g.
fastening method: 4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit.
wire length / of antenna cable: 0.3 m.
product features, product functions, product components / general:
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus.
certificate of suitability:
IECEx: No.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Antenna cables 1 to 40 m.
