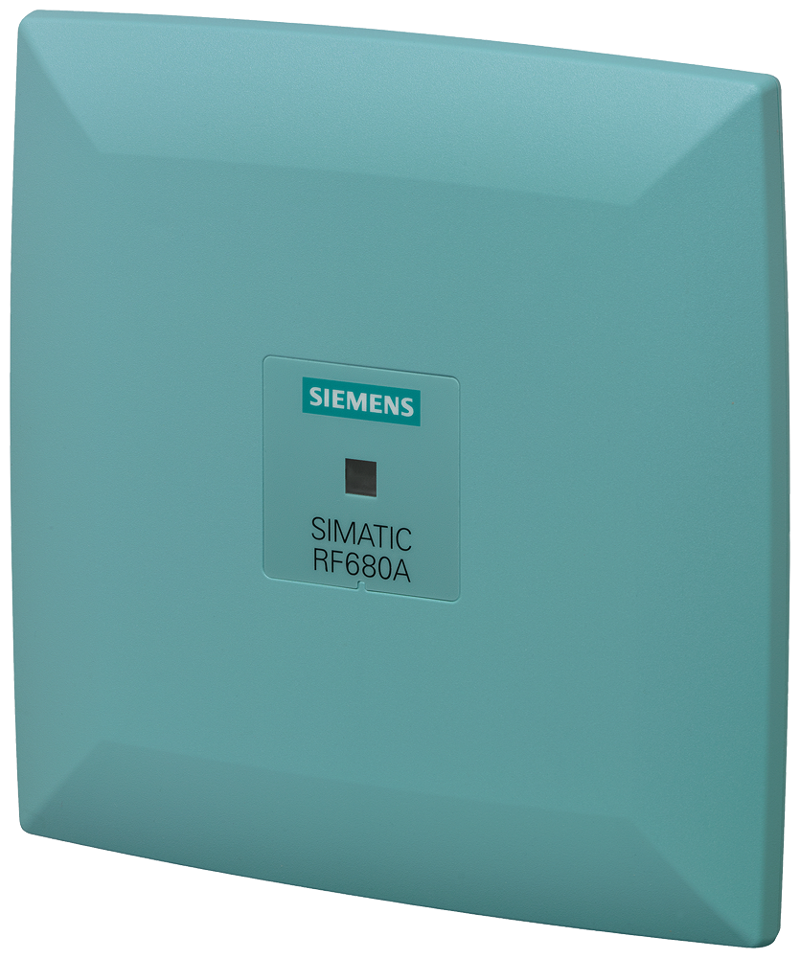

Antenna RF680A, RF600, switchable linearly circular, 865-928 MHz, IP65
SKU: 6GT2812-2GB08
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
product designation: Antenna RF680A.
SIMATIC RF600 antenna, RF680A.
Linear or circular frequencies can be chosen from 865 to 928 MHz.
Broadband dimensions: 198 x 198 x 60 mm (LxWxH).
IP65.
25 to +75 °C.
suitability for operation: SIMATIC RF600.
radio frequencies:
transmission frequency: 865-928 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
antenna gain compared to spherical radiator:
with linear radiation: 3.5 dB.
with circular radiation: 3.5 dB.
impedance: 50 Ω.
polarization: Linear (h/v), circular, combined.
standing wave ratio (VSWR) / maximum: 1.45.
radiating angle of the antenna:
horizontal: 90°.
vertical: 77°.
type of electrical connection / of the antenna: RP-TNC.
design of plug-in connection: male.
mechanical data:
material: Pocan.
colour: Pastel turquoise.
tightening torque / of the screw for securing the equipment / maximum: 2 N·m.
mounting distance:
relating to metal surfaces / recommended / minimum: 0 m.
ambient conditions:
ambient temperature:
during operation: -25 ... +75 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP65.
shock acceleration: 300 m/s².
vibrational acceleration: 100 m/s².
design, dimensions and weights:
width: 198 mm.
height: 198 mm.
depth: 60 mm.
net weight: 690 g.
fastening method: 4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit.
wire length / of antenna cable: 0 m.
product features, product functions, product components / general:
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus.
certificate of suitability:
IECEx: No.
reference code / according to IEC 81346-2:2019: TFB.
accessories:
accessories: Antenna cables 1 to 40 m.
