UHF module RF660H FCC
SKU: 6GT2813-1FA10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

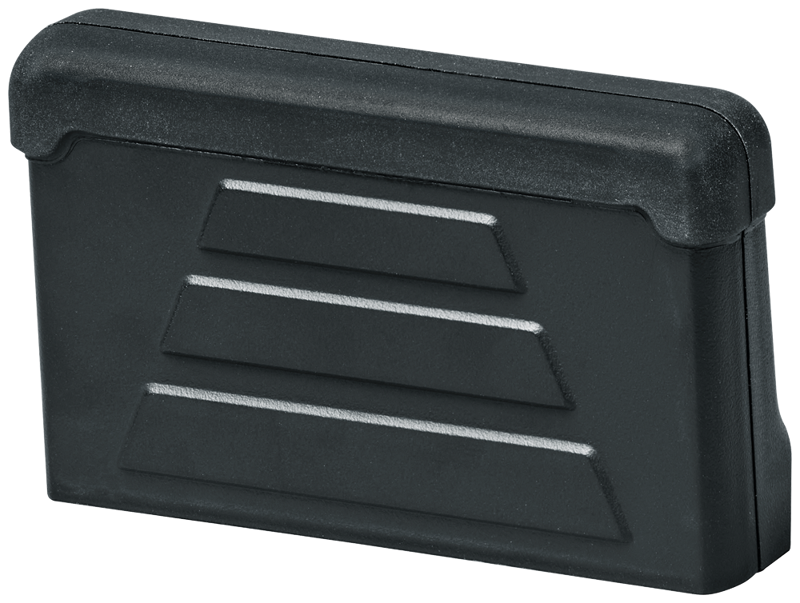

Product designation: UHF module RF660H FCC.
SIMATIC RF660H FCC UHF RFID reader module; exclusively for use with the base device RF160B (6GT2003-0FA00); for North America/Canada (FCC).
suitability for operation: RF600 transponder; only to be operated with RF160B.
range: 1300 mm.
radio frequencies:
operating frequency: 902-928 MHz.
equivalent isotropically radiated power: 8.5-380 mW.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
protocol / with radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-63.
transfer rate / with radio transmission / maximum: 400 kbit/s.
product feature / multitag-capable: Yes.
polarization: Linear.
supply voltage, current consumption, power loss:
type of current supply: via RF160B basic device.
type of battery: -.
ambient conditions:
ambient temperature:
during operation: -20 ... +50 °C.
during storage: -20 ... +60 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
protection class IP: IP65.
design, dimensions and weights:
width: 85 mm.
height: 52 mm.
depth: 27 mm.
net weight: 0.06 kg.
product features, product functions, product components / general:
design of the interface: system internal to RF 160B.
standards, specifications, approvals:
certificate of suitability: FCC Part 15.
reference code:
according to IEC 81346-2:2019: BYB.
accessories:
accessories: SIMATIC RF RF160B basic device.
