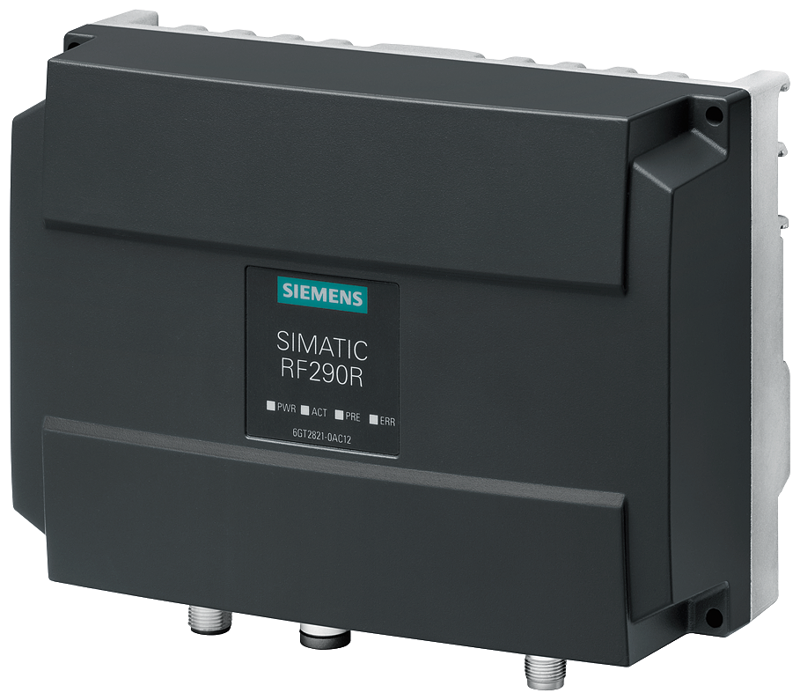

SIMATIC RF200 reader RF290R without antenna; with serial RS 232/RS 422
SKU: 6GT2821-0AC12
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: RF290R reader.
SIMATIC RF200 reader RF290R without antenna and serial RS 232/RS 422 interface can connect antennas ANT D2, ANT D5, ANT D6, and ANT D10.
Suitability for operation: ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules and PC systems.
Radio frequencies:
operating frequency / rated value: 13.56 MHz.
range / maximum: 650 mm; Range adjustable in reader via transmission power, range is dependent on transponder type.
protocol / with radio transmission: ISO 15693, ISO 18000-3.
transfer rate / with radio transmission / maximum: 26.5 kbit/s.
product feature / multitag-capable: Yes.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
transfer rate / at the point-to-point connection / serial / maximum: 115.2 kbit/s.
transmission time / for user data:
for write access / per byte / typical: 0.6 ms.
for read access / per byte / typical: 0.6 ms.
interfaces:
number of external antennas: 1.
standard for interfaces / for communication: RS422/RS232.
type of electrical connection: M12, 8-pin.
for external antenna(s): TNC.
for supply voltage: M12, 8-pin.
for communications interface: M12, 8-pin.
at the digital inputs/outputs: M12, 4-pin, female connector.
number of digital inputs: 1.
number of digital outputs: 1.
mechanical data:
material: aluminium.
colour: silver/anthracite.
tightening torque / of the screw for securing the equipment / maximum: 1.5 N·m.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 24 V.
: 21.6 ... 26.4 V.
consumed current / at DC:
at 24 V / typical: 0.04 A.
at 24 V / maximum: 0.5 A.
ambient conditions:
ambient temperature:
during operation: -20 ... +70 °C.
during storage: -25... +80 °C.
during transport: -25 ... +80 °C.
protection class IP: IP65.
shock resistance: EN 60721-3-7 Class 7 M2.
shock acceleration: 300 m/s².
vibrational acceleration: 20 m/s².
design, dimensions and weights:
width: 200 mm.
height: 80 mm.
depth: 140 mm.
net weight: 1.8 kg.
fastening method: 4 M4 screws, DIN rail 35 mm, S7-300 mounting rail.
wire length:
of antenna cable / minimum 3.3 m.
of antenna cable / maximum 25 m.
with RS 232 interface / maximum 30 m.
for RS 422 interface / maximum 1000 m.
product features, product functions, product components / general:
display version: 4 LEDs.
standards, specifications, approvals:
certificate of suitability: CE, FCC, IC (Canada).
certificate of suitability:
IECEx: No.
MTBF: 18 a.
reference code:
according to IEC 81346-2:2019: BYB.
accessories:
accessories: Various antennas are available, antenna combiners, antenna multiplexer, mounting set for top-hat rail mounting.
