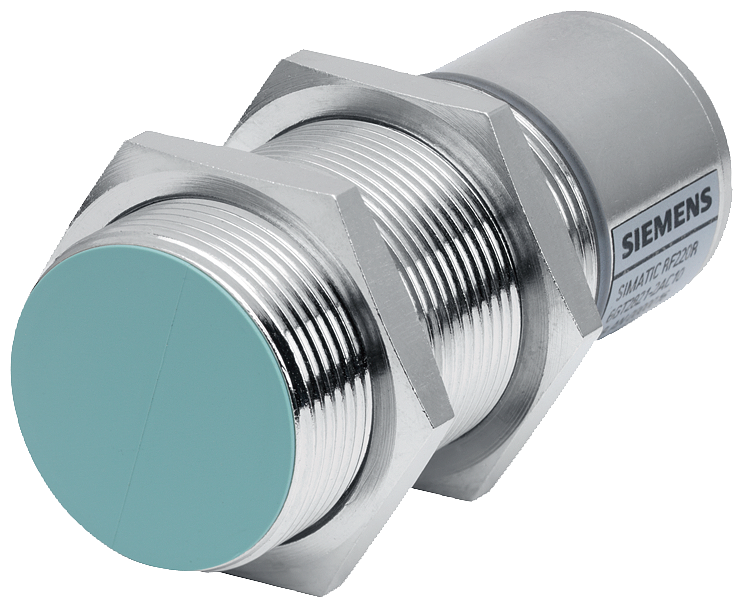

SIMATIC RF200 reader RF220R IO-Link interface V1.1; IP67
SKU: 6GT2821-2BC32
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: RF220R reader IO-Link.
SIMATIC RF200 reader RF220R IO-Link interface V1.1; IP67, -25 to +70 °C; M30x 83 mm; with integrated antenna 32 bytes of IO; 230 Kbit/s.
Suitability for operation: ISO 15693 transponder (MDS Dxxx), for connecting to IO-Link Master V1.1.
Radio frequencies:
operating frequency / rated value: 13.56 MHz.
range / maximum: 35 mm; Range is dependent on transponder type.
protocol / with radio transmission: ISO 15693, ISO 18000-3.
transfer rate / with radio transmission / maximum: 26.5 kbit/s.
product feature / multitag-capable: No.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
transfer rate / at the point-to-point connection / serial / maximum: 230 kbit/s.
transmission time / for user data:
for write access / per byte / typical: 3.3 ms.
for read access / per byte / typical: 2.4 ms.
data volume / of the address range of the inputs / total: 32 byte.
data volume / of the address range of the outputs / total: 32 byte.
interfaces:
standard for interfaces / for communication: IO-Link V1.1.
type of electrical connection: M12, 4-pin.
mechanical data:
material: Brass, nickel-plated / PBT.
colour: silver/pastel turquoise.
tightening torque / of the screw for securing the equipment / maximum: 40 N·m.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 24 V.
: 20.4 ... 28.8 V.
consumed current / at DC:
at 24 V / typical: 0.05 A.
ambient conditions:
ambient temperature:
during operation: -20 ... +70 °C.
during storage: -25... +80 °C.
during transport: -25 ... +80 °C.
protection class IP: IP67.
shock resistance: EN 60721-3-7 Class 7 M2.
shock acceleration: 500 m/s².
vibrational acceleration: 200 m/s².
design, dimensions and weights:
height: 83 mm.
diameter: 30 mm.
net weight: 0.14 kg.
fastening method: 2 nuts M30 x 1.5 (included in scope of supply)
wire length:
between master and IO-Link device / maximum: 20 m.
product features, product functions, product components / general:
display version: 3-colour LED.
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus.
certificate of suitability:
IECEx: No.
MTBF: 501 a.
reference code:
according to IEC 81346-2:2019: BYB.
