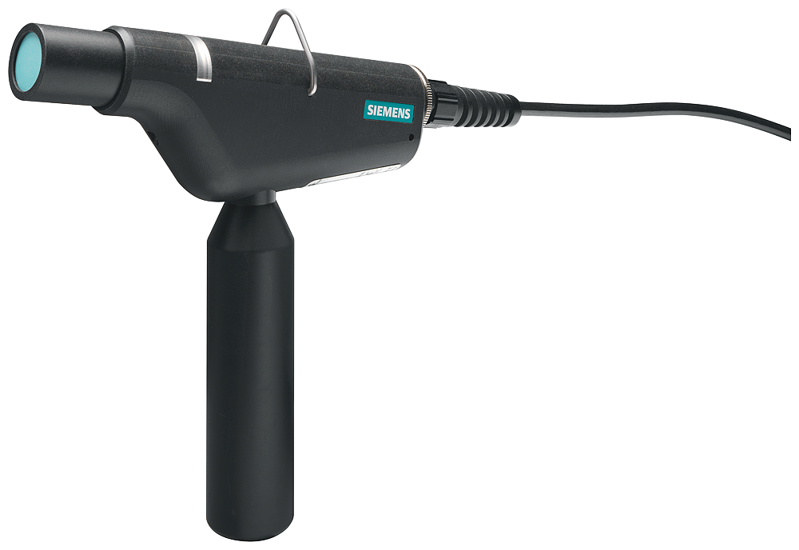

Handheld reader RF210M, integr. RFID read/write unit RF210R
SKU: 6GT2823-0AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is RF210M hand-held reader.
SIMATIC RF200 portable reader RF210M features an integrated RFID write/read unit RF210R, an RS422 interface, and a 2m connecting cable.
Suitability for operation: RF200/ISO 15693 transponder, to connect to communication modules via spiral cable with usable length of 2 m to 3.5 m.
range: 0 ... 20 mm.
Radio frequencies:
Operating frequency: 13.56 MHz.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
protocol / with radio transmission: ISO 15693, ISO 18000-3.
transfer rate / with radio transmission / maximum: 26.5 kbit/s.
product feature / multitag-capable: No.
supply voltage, current consumption, power loss:
type of current supply: 24 V via communication module.
type of battery: --.
ambient conditions:
ambient temperature:
during operation: -25 ... +50 °C.
during storage: -25... +60 °C.
height of fall / maximum: 1.5 m.
protection class IP: IP54.
design, dimensions and weights:
width: 195 mm.
height: 140 mm.
depth: 26 mm.
net weight: 10 g.
product features, product functions, product components / general:
design of the display: 3 colour LED.
design of the interface: M12 8-pole with RS422 at spiral cable, which is permanently fixed to the reader.
product functions / management, configuration, engineering:
product function / of the software: Function blocks for execution of ISO15693 transponders.
type of programming: Function blocks FB 45/55, ident profile.
standards, specifications, approvals:
certificate of suitability: Wireless according to R&TTE guidelines EN300 330 and EN 301489, FCC, UL/CSA.
reference code:
according to IEC 81346-2:2019: BYB.
