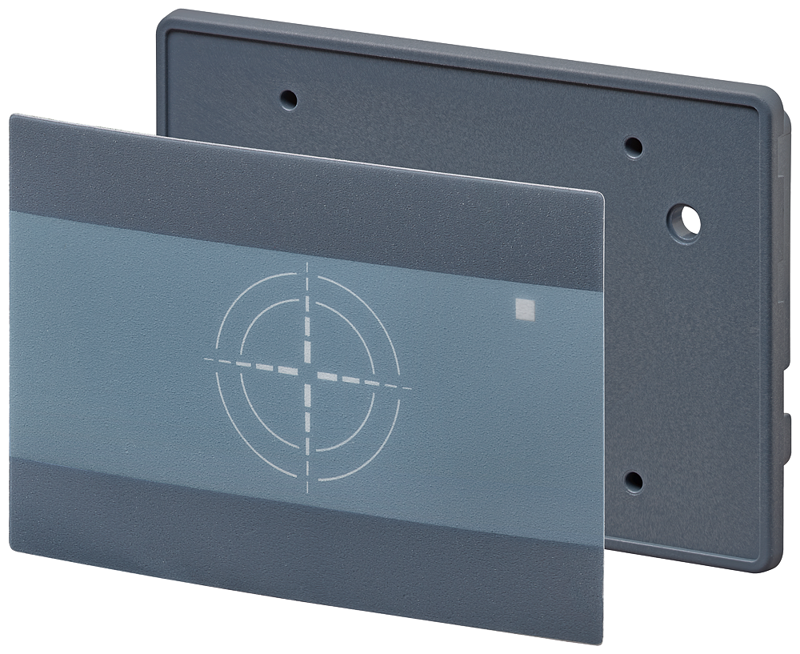

SIMATIC RF1000 Access control reader; RF1070R OEM variant
SKU: 6GT2831-6BA50-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type identification is Reader RF1070R OEM USB/RS232.
SIMATIC RF1000 access control reader with RF1070R OEM model supports ISO 14443 A/B, Mifare, ISO15693, Legic Prime, and Legic Advant.
Interfaces: USB and RS232; IP65 front, -25 to +55 °C.
Dimensions: 90 x 62 x 25 mm.
Includes integrated antenna, 1.8 m USB cable, and neutral front foil without business logo.
suitability for operation: Legic, ISO 15693 and ISO 14443 A/B transponder, for connecting to PC and control systems, for front panels with customer-specific design.
radio frequencies:
operating frequency: 13.56 MHz.
range / maximum: 0.03 m; Range is dependent on transponder type.
protocol / with radio transmission: Legic Prime, Legic Advant, ISO 15693, ISO 14443 A/B, chip set: SM4200M, Felica, NXP NTAG21x, HID iClass.
transfer rate / with radio transmission / maximum: 106 kbit/s.
product feature / multi-tag-capable: Yes.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
transfer rate / at the point-to-point connection / serial / maximum: 115.2 kbit/s.
interfaces:
standard for interfaces / for communication: USB 2.0, RS232.
type of electrical connection: 1.8 m connecting cable with USB 2.0 type A connector or RS232 connecting cable.
mechanical data:
material: PC-GF.
colour: titanium grey.
mounting distance / relating to metal surfaces / recommended / minimum: 0 mm.
supply voltage, current consumption, power loss:
supply voltage / at DC:
rated value: 5 V.
: 4.6 ... 5.25 V.
consumed current / at DC:
at 5 V / typical: 0.15 A.
at 5 V / maximum: 0.3 A.
ambient conditions:
ambient temperature:
during operation: -25 ... +55 °C.
during storage: -25 ... +55 °C.
during transport: -25 ... +55 °C.
protection class IP: IP65; on front after professional gluing of the included front label and cabinet installation, IP20 rear.
shock resistance: EN 60721-3-7 Class 7 M2.
shock acceleration: 300 m/s².
vibrational acceleration: 50 m/s².
design, dimensions and weights:
width: 90 mm.
height: 62 mm.
depth: 23.5 mm.
net weight: 0.12 kg.
fastening method: 4 M4 screws for cabinet installation.
product features, product functions, product components / general:
display version: 3-color LED.
product feature / silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus.
certificate of suitability:
IECEx: No.
reference code:
according to IEC 81346-2:2019: BYB.
